300-4000mm Steel Pile Cage Welding Machine for Rcc Pipes/Drainage

Product Description

Product Description

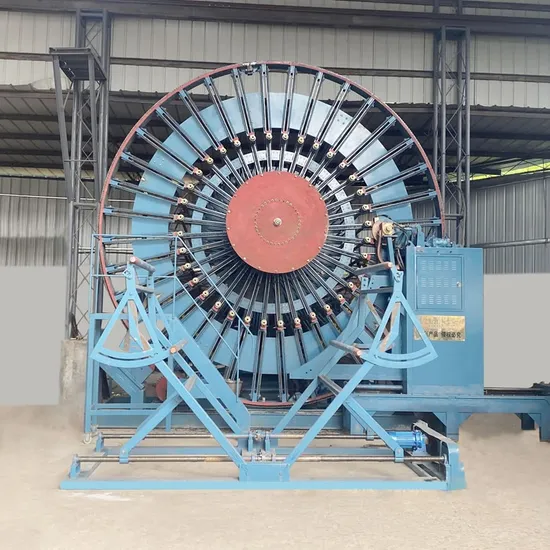

Introduction of Pile Cage Welding Machine
Reinforcement cage is used more and more in the construction projects, the traditional manual made steel cage is a waste of time and labor, low efficiency, there is an urgent need for automatic or semi-automatic reinforcement cage equipment. It can be widely used in steel processing plants as well as pile construction and construction units. Dostar HGZ series cage molding machine is high accuracy designed and manufactured. It's widely used for drilling pile reinforcement cage processing.
Features of Pile Cage Welding Machine
1. Wire Cage Welding Machine has advanced technology is introduced from Europe, lots of parts have patent for invention, the high efficiency also high endurance and humane designings are safe and reliable;2. Wire Cage Welding Machine is made of high precision of PLC control, LCD display is easy for operating, have mighty graphics library, it is able to communicate with management software;3. Electric-Resistance-Welded in use, energy conservation and consumption reduction;4. Rebar cages welding machine: cage diameter 300-4000mm. Product Parameters
Technical Parameters

Model	HGZ300-1200	HGZ800-2400	HGZ1350-3000	HGZ1800-3600	HGZ2800-4000
Cage Dia.(mm)	Ф300- Ф 1200	Ф 800- Ф 2400	Ф 1350- Ф 3000	Ф 1800- Ф 3600	Ф 2800- Ф 4000
Cage Length(mm)	2000-4000	2000-4000	2500	2500	2500
Longitudinal Bar(mm)	Max.12	Max.24	Max.32	Max.48	Max.66
Longitudinal Bar Dia.(mm)	4-6	4-10	6-12	6-16	6-16
Bar Gap(mm)	20-150	20-150	20-100	20-100	20-100
Welding Speed	30R/Min.	12 R/Min.	8 R/Min.	6 R/Min.	5 R/Min.
Welding Type	Plate-type	Plate-type	Wheel-type	Wheel-type	Wheel-type
Power	Intermediate Frequency Inverter	Intermediate Frequency Inverter	Intermediate Frequency Inverter	Intermediate Frequency Inverter	Intermediate Frequency Inverter
