Automatic Brc Concrete Steel Reinforcing Welded Fence Panel Reinforcement Equipment Wire Mesh Welding Making Machine Production Line for Construction

Product Description

Automatic Brc Concrete Steel Reinforcing Welded Euipment Fence Panel Reinforcement Wire Mesh Welding Making Machine Production Line for Construction
Product Description
Reinforcing mesh welding line, also called BRC mesh welding machine, Construction mesh welding machine.
The reinforcement mesh welding machine is used to make steel rebar mesh, road mesh, building construction mesh, etc. With more-than-20years experience in design and manufacture, our BRC mesh welding machine is featured by high capacity, easy operation, and precise control.

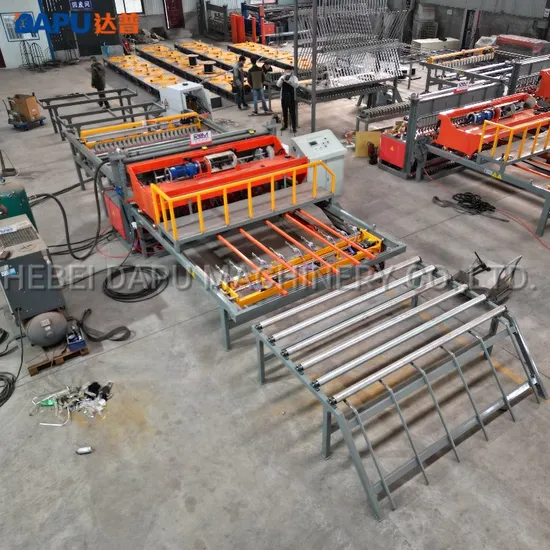

Detailed Photos
Product Parameters

Model	DP-GW-2500B	DP-GW-3000B	DP-FM-2500A	DP-FA-2500A+	DP-FM-3000A
Max.mesh width	2500mm	3000mm	2500mm	3000mm
Line wire dia(Pre-cut)	4-12mm		3-8mm
Cross wire dia(Pre-cut)	4-12mm		3-8mm
Line wire space	100-300mm		100-300mm	3-6mm/50-300mm 6-8mm/100-300mm	100-300mm
Cross wire space	50-300mm		50-300mm
Max.mesh length	6m/12m		6m/12m
Max.welding speed	80-100times/min		80-100times/min
Welding electrodes	24pcs	30pcs	24pcs	51pcs	30pcs
Welding transformer	150kva*12pcs	150kva*15pcs	150kva*6pcs	150kva*9pcs	150kva*8pcs
Weight	10T	12T	6.8T	7.3T	7.5T

Advantage
1. Easier machine maintenance, less machine problem.
2. Same welding pressure for each welding point, guarantee welding quality.
3. Enough welding power to weld max.12mm rebar.
4. The welding speed can be up to max.80-100 times/min.
5. For the welding electrode no need to work, only need to disconnect the electromagnetic valve.
6. Precision pressure reduction valve, ±0.5% error. High flow.
