Jwell Small Automatic Blowing Molding Plastic Manufacturing Making Machine for Urea Box, Tool Box, Bumper Production, Auto Parts, Car Spoilers Bm50

Product Description

Product Parameters

Model	Unit	BM50
Max product volume	L	50
Dry cycle	Pc/h	450
Die head structure	Accumulating type	Accumulating type
Main screw diameter	mm	90
Max plasticizing capacity(PE)	kg/h	180
Driving motor	KW	45
Accumulating volume	L	6.2
Oil pump motor power	KW	18.5
Clamping force	KN	400
Space between platen	mm	450-1200
Platen size W*H	mm	880*880
Max.mould size	mm	700*850
Heating power of die head	KW	28
Machine dimension L*W*H	m	5.6*2.4*3.8
Machine weight	T	13.5
Total power	Kw	110

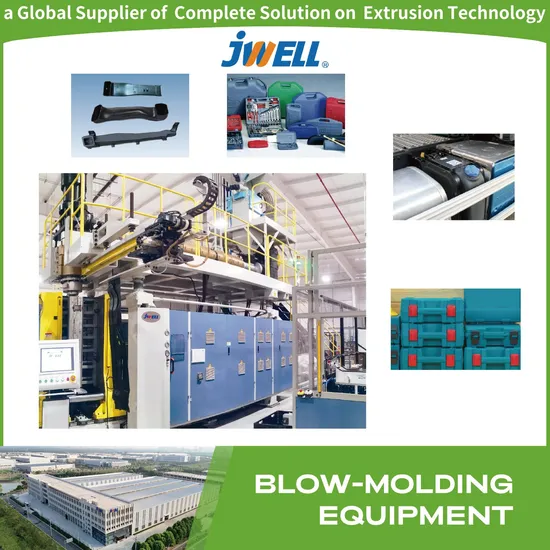

Detailed Photos

Product Description
Overview
The JWZ-BM30/50/100/160 Blow Molding Machine is a high-performance and versatile manufacturing solution designed specifically for the production of urea boxes, tool boxes, bumpers, and other essential automotive components. With advanced features and customizable configurations, this machine ensures efficient and precise production for automotive industry needs.
Key Features:
Targeted Applications: Designed for producing urea boxes, tool boxes, automotive seats, air ducts, bumpers, flow boards, and car spoilers. High-Efficiency Extrusion: Equipped with a high-output extrusion system and accumulating die head for continuous, efficient operation. Customizable Options: Supports customized platen types and sizes, allowing manufacturers to tailor the machine to their specific product dimensions. Advanced Material Handling: Optional Jw-DB single-station hydraulic screen-exchanger system for optimized material processing and enhanced filtration. Energy-Efficient Servo System: Optional hydraulic servo control system increases precision, reduces energy consumption, and ensures stable performance. Enhanced Automation: Optional features like bottom sealing and a take-out robot streamline the production process, reducing manual intervention and improving efficiency. Applications:
Urea Boxes: Ideal for producing durable and precise urea boxes for automotive applications. Tool Boxes: Ensures high-strength and lightweight tool boxes with superior finish and accuracy. Bumpers and Spoilers: Supports large-size, complex automotive exterior components like bumpers and spoilers. Air Ducts and Flow Boards: Provides excellent material strength and stability for critical air duct systems and flow boards. The JWZ-BM30/50/100/160 Blow Molding Machine for Urea Box, Tool Box, and Bumper Production is an essential tool for manufacturers seeking reliable, high-output solutions for diverse automotive component production.
