Clw 20cbm LPG Filling Plant 10ton Gas Tank Station High Capacity LPG Storage

Product Description

Detail images
Overview
CLW 20CBM LPG Filling Plant 10Ton Gas Tank Station High Capacity LPG Storage
1. Quality, dimension and welding quality of pressure components, operation quality, installation quality, safety devices and accessories within the product materials.2. Physical and chemical tests of conventional tank materials, such as mechanical properties and chemical components. Through strict X-ray nondestructive testing and magnetic particle testing, the welding joints, welding parts, can and geometrical pressure were tested.3. Sealing products, bearing pressure, affecting the inspection of various technical indexes of product safety operation.4. A, grade B 100% radiation welding test, grade II qualified, C, grade D weld 100% magnetic particle inspection, grade I qualified.
Specification

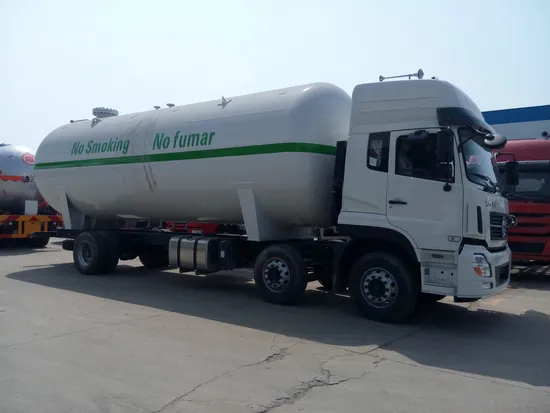

Tanker Essential Information
Volume of Tank(Liters)	56
Overall Dimensions(L*W*H)(mm)	12700*2500*3975
Tank Dimensions (Inner Diameter*Thickness*Length)(mm)	2450*11.5*12340
Estimated Tare Weight(kg)	16480
Payload(kg)	23520
Total Weight(kg)	40000
Wheelbase(mm)	6865+1310+1310
Shell of Tanker
Products	Liquefied Petroleum Gas (Propane)
Fluid Property	Flammable
Design Pressure(Mpa)	1.61
Design Temperature(ºC)	50
Corrosion Allowance(mm)	1
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker Body:
	End Plate:
	Main Beam:
Quality Control Process
Riagraphic Test	100% X-ray detection
Heat Treatment	Overall treatment in a furnace,600ºC to 640ºC
Hydraulic Test(Mpa)	2.22
Test Pressure(Mpa)	1.6
Magnaflux Inspection	For pipe and flange connection
Manhole(As Customer's Requirement)
Quantity	1;on the top, DN450/DN500
Safety Valve(As Customer's Requirement)
Quantity	2
Location	On the top of tanker
Size	DN50 or As Customer's Requirement
Level Gauge
Type	Manuel rotation type/Ball floating type
Location	At the rear or front of the end plate or as requirement
Control System
Liquid Gauge	1
Thermometer	1
Pressure Gauge	1
Emergency Cut-off Valves	2
Ball Valve	2
Running System
Axles	3*13T BPW Brand
Tire	12R22.5 Tubeless Tire
Landing Leg	JOST
King Pin	2" or 3"
Accessories
Tool Box	2
Valve Box	2
Wheel Carrier	1
Fire Extinguisher	2
Fender	4
Paint	As Customer's Requirement
Anti Static Belt	As Customer's Requirement
Electric System	As Customer's Requirement
Brake	As Customer's Requirement
Discharging Hose	As Customer's Requirement
Sun Visor	As Customer's Requirement
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels

Company Profile
Superegn Mechanical Engineering (Shanghai) Co., Ltd. is a professional Chinese construction machinery exporter. Since our company was founded, we persistently introduce Chinese construction machinery to international markets. We make more international customers know and approbate Chinese machinery, and gradually build up friendship with industrial customers all over the world. Our strengths are as follows: (i) Seven years professional experience in trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers; (ii) Proactive and professional sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese; (iii) our products are original brand new ones with competitive price; (iv) logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world; (v) Comprehensive after-sales service, including two-years warranty, spare parts supply, installment and maintenance, training and technical advice; We sincerely hope to cooperate, develop together and build a good future with you. Superegn, your genuine and professional partner in China!

---
