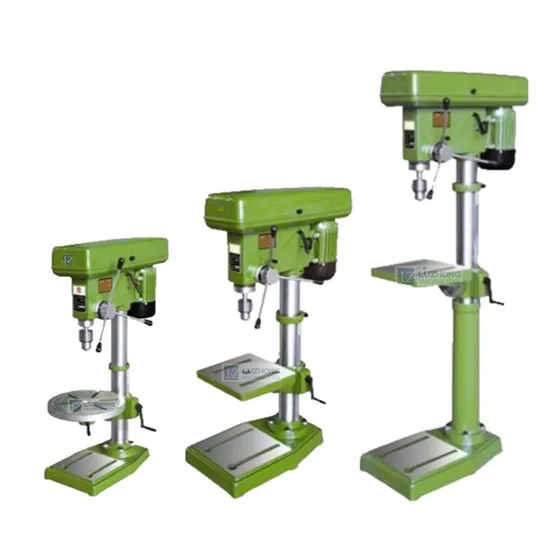

Small Mini Bench Drilling Machine (Bench Drill Press Z4112A Z4116A Z4120 Z4125)

Product Description

Small Mini Bench Drilling Machine (Bench Drill Press Z4112A Z4116A Z4120 Z4125)
Product Description

Product description:
1. Both spindle head, column and base using high quality cast iron, strong and everlasting.
2. High precision with excellent feature, widely use at instrument and camera area. Product Parameters
Product main technical specifications:

Specifications	Z4112A/4116A	Z4116	Z4120/Z4125
Max. Drilling capacity(mm)	12.7/16	16	20/25
Diameter of column(mm)	70	85	85
Spindle travel(mm)	100	125	125
Distance spindle axis to column surface(mm)	193	240	240
Max distance spindle nose to worktable(mm)	95	297	367
Max. Distance spindle nose to worktable(mm)	320	560	630
Spindle taper(mm)	B16/MT2	MT2	MT2/MT3
Spindle speeds range(r/min)	400-4090	365-3150	365-3150
Spindle speeds series(r/min)	5	5	5
Dimension of worktable surface(mm)	250×250	280×300	280×300
Dimension of base(mm)	495×375	590×375	590×375
Overall height(mm)	850	1127	1127
Motor(W)	550/750	750	750/1100
G.W/N.W(kg)	120/102	165/140	165/140
Packing size(cm)	83×42×92	83×42×92	82×48×102

Detailed Photos

Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
