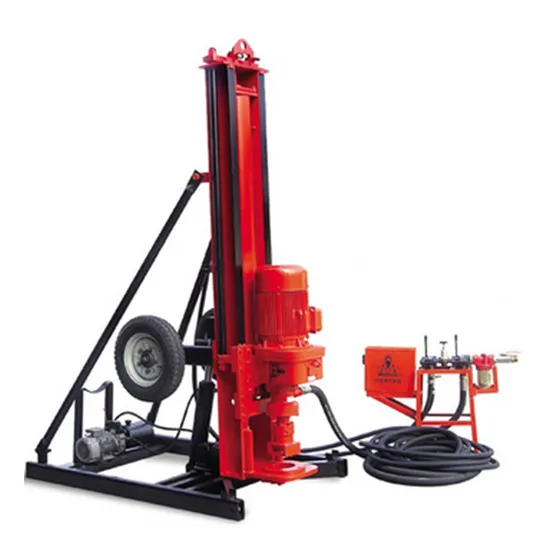

Small Borehole Portable DTH Drill Rig Pneumatic Rock Drill Rotary Mine Drilling Rig for Mine

Product Description

Small Borehole Portable DTH Drill Rig Pneumatic Rock Drill Rotary Mine Drilling Rig Kg430s for Mine
Applications
•Applicable to small and medium-sized mines and road construction, defense and water conservancy and stone works in the large diameter borehole drilling operations.
•It is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where other drilling vehicles do not work properly.

Parameters

Model	YGD70 YGD80	YGD100	YGQ100	YGB100-4 YGB120-5.5
Drilling Diameter (mm)	50-90 90-120	90-130	90-130	90-130
Apply Rock	≥20	≥20	≥20	≥20
Drilling Depth (m)	15	≥25	≥25	≥30-40
Drilling Rotate Speed (r/min)	110	110	110	110
Working Air Pressure (Mpa)	0.5-0.7	0.5-1.0	0.5-1.0	0.5-1.0
Air Consumption (m3/min)	4	6	12	10
Cylinder Diameter (mm)	90	140	140	140
Propulsion Stroke (mm)	1070	1070	1070	1070
Max Propelled Force (N)	3600 8000	9600	9600	9600
Electric Motor Power (KW)	3 4	4	-	4 5.5
Electric Motor Voltage (V)	380	380	-	380
Rated Speed (r/min)	1440	1440	3200	1440
Drilling Rod OD (mm)	42	50-60	50-60	60
Drilling Rod Length (mm)	1025	1025	1025	1025
Dimension (mm)	1740*260*420	2280*440*550	2230*380*550	2230*380*550
Weight (kg)	280 320	470	450	460 480

Characteristics
1. Compact structure, easy operation, quick cutting speed, high efficiency, good demolition, convenient transport;
2. The energy loss does not increase with the drill rod increasing;
3. Working noise is greatly reduced;
4. Higher degree of mechanization, less auxiliary operation time, improving the drilling rig operating rate.
More Details
Photos show
