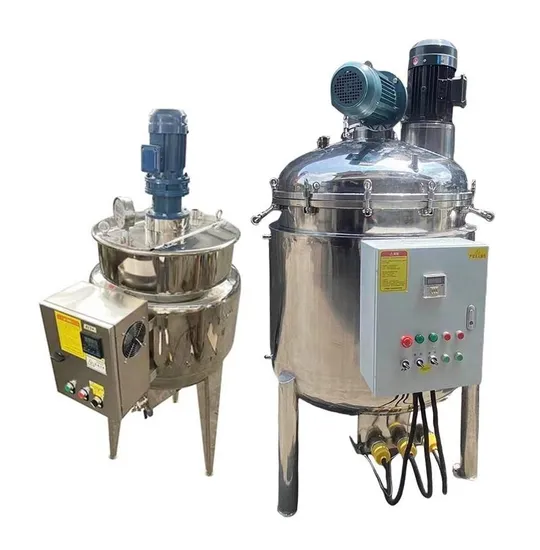

50 100 200 Liter Electric Heating Chemical Reactor Stainless Steel Homogenizer Mixer Machine

Product Description

Custom made stainless steel double jacketed 50L 100L 200L 300L 500L electric heating blending mixing vessel heated chemical reactor mixing tank with agitator homogenizer

Item	Specification
Volume	100L 304 stainless steel mixing tank
Voltage	220V/380V/110V
Frequency	50/60HZ
Power (kW)	mixing: 0.75kW; heating: 6KW
Steel tank thickness	2-3mm
Blade	Frame mixing paddle with scraping or custom made accoridng use
Range of mixer speed	40rpm, custom made fixed or adjusted.
Temperature range	0-300 adjustable
Surface treatment	Wiredrawing or Mirror finish
Lid	Cover lid or sealed lid
Custom made	homogenizer, double jacket, speed, observation port, seal lid, surface treatment, inlet/outlet, power, control box.
Emulsifying machine	4KW/2900RPM top or bottom optional
Material	Stainless Steel 304 / SUS316L
Product type	Liquid , soap , shampoo, cream,cosmetic,etc
Valve	DN25(1'')
Warranty	1 year
Service	Supply drawing before produce
Product name	stainless steel liquid mixer detergent mixing tank with control box
Capacity	50L, 100L, 200L, 300L, 500L,1000L, 2000L,3000L, 5000liters

Product Advantages
Heating------Mixing------Homogenizer
1. High-speed disperser might mix and disperse viscously, solid and liquid etc. various kind of raw material will be dissolved, during liquid production which can save energy consumption and shorten production and shorten production period.
2.Main adopts stepless timing device which reduces babble occur under low temperature and high viscosity condition less air bubble will be formed.
3.To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.
4.Finished products can be discharged by a valve or match a screw pump.






Feature
1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation;
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Application

Packaging & Shipping
MOQ or custom made: 1 unit
Package: Export wooden pallet or box as request.
Lead time: 10 days after confirm drawing.

Our Services Our company has manufactured mixer machinery and steel products for a wide variety of purposes across the different industries. With the help of an experienced group of dedicated technocrats, we manufacture the astounding range of mixer tanks for Agriculture, Petrochemical and Wastewater industry. We are manufacturer and exporter of chemical storage tank, acid storage, water storage tank, liquid handling tank that has extraordinary function of corrosion resisting against hazardous corrosive, acidic and caustic chemicals in a risk-free and safe way.



a.Timely and short lead time
b.OEM & ODM are welcome
c.tried orders are available
d.sample can be supplied in 3days
Advantage of choosing us:
-Professional manufacturer with "Gold supplier"supports "Trade Assurance"
-Product:various creative type,style,dimension,color
-High quality,competive price,excellent service
-With certificate
-Warranty

---
