Hot Sale 320kg-1000kg Elevator Lift Motor Gearless Traction Motor Machine

US$3,000.00
1-9 Pieces
US$2,500.00
10-19 Pieces
US$1,800.00
20-49 Pieces
US$1,000.00
50+ Pieces

Basic Info.

Model NO.
NV
Type
Elevator Traction Machine
Suitable for
Elevator
Load Capacity
2000kg
Persons
11-20
Speed
1.00-2.00m/s
Drive Mode
AC
Control Type
Microcomputer Frequency Control
Lift Mechanism
Lift Chain
Use of Occasions
Public Traffic
Guide Rail
T Guide
Material
Cast Iron
Product Name
Elevator Gearless Traction Machine
Delivery
Fast
Certificate
ISO9001
Transport Package
Standard Export Package
Specification
Elevator Traction Machine
Trademark
NOVA
Origin
China
HS Code
8431310090
Production Capacity
50000pieces/Year

Product Description

Product Description

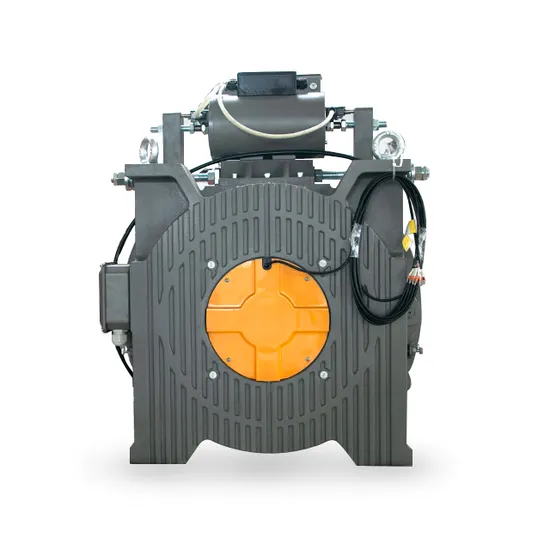

Product Description Using the permanent magnet synchronous elevator gearless traction machine as the power source, it is small in size and compact in structure, which can meet the design requirements of small machine room and provide more free design space for architectural design.
Name Elevator Gearless Traction Machine
Voltage 380V
Speed(m/s) 1 - 2.5
Roping 1:1
Weight 350kg
Max. Shaft Load 3000kg
Brake DC110V 2×0.88A
Product Parameters
Model Load (Kg) Speed (m/s) Sheave Diam (mm) Rope Sheave (mm) Current (A) Torque (Nm) Rated Speed (rpm) Frequency
(Hz) 		Power
(kW)
NV41T-W7 630 1 Φ400 4×Φ10×16 9.7 420 96 25.6 4.2
NV41T-W7 630 1.5 Φ400 4×Φ10×16 14.9 420 144 38.4 6.3
NV41T-W7 630 1.6 Φ400 4×Φ10×16 14.9 420 153 40.8 6.7
NV41T-W7 630 1.75 Φ400 4×Φ10×16 15.9 420 167 44.5 7.3
NV41T-W7 630 2 Φ400 4×Φ10×16 18.3 420 192 51.2 8.4
NV41T-W7 800 1 Φ400 5×Φ10×16 12.1 530 96 25.6 5.3
NV41T-W7 800 1.5 Φ400 5×Φ10×16 18.8 530 144 38.4 8
NV41T-W7 800 1.6 Φ400 5×Φ10×16 18.8 530 153 40.8 8.5
NV41T-W7 800 1.75 Φ400 5×Φ10×16 20.7 530 167 44.5 9.3
NV41T-W7 800 2 Φ400 5×Φ10×16 23.2 530 192 51.2 10.7
NV41T-W7 1000 1 Φ400 5×Φ10×16 14.7 650 96 25.6 6.5
NV41T-W7 1000 1.5 Φ400 5×Φ10×16 22.9 650 144 38.4 9.8
NV41T-W7 1000 1.6 Φ400 5×Φ10×16 22.9 650 153 40.8 10.4
NV41T-W7 1000 1.75 Φ400 5×Φ10×16 25.1 650 167 44.5 11.4
NV41T-W7 1000 2 Φ400 5×Φ10×16 28.2 650 192 51.2 13.1
