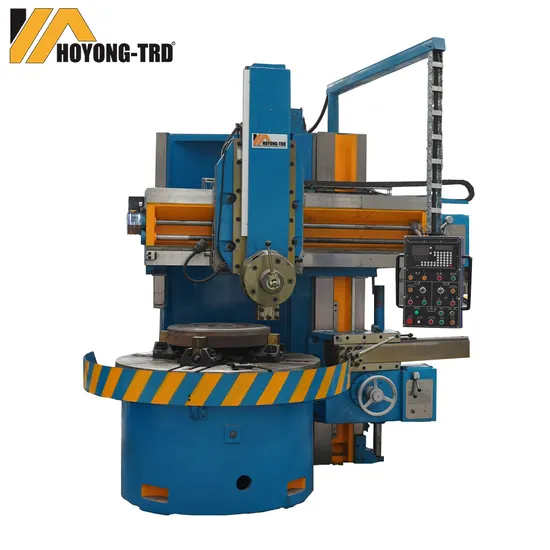

C5118 High-Precision Conventional Single Column Vtl CNC Vertical Lathe

Product Description

VERTICAL LATHE FEATURES:
1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted,
severance of car wheel lathe.
2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing
is good.
3. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical equipment are used famous-brand
products in China.
4. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
5. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part has good quality.
SPECIFICATIONS:

No.	Name	Unit	C516	C518	C5110	C5112	C5116	C5120
1	Max. turning diameter	mm	630	800	1000	1250	1600	2000
2	Table diameter	mm	600	720	900	1000	1400	1800
3	Max.height of workpiece	mm	600	800	800	1000	1200	1250
4	Max.weight of workpiece	T	0.8	1.2	2	3.2	5	8
5	Horizontal travel of tool post	mm	500	570	670	700	915	1115
6	Vertical travel of tool post	mm	650	650	650	650	800	800
7	Main motor power	KW	11	22	22	22	30	30
8	Overall size of machine	mm	1750*1230*2580	2080*2621*3515	2187*2711*3515	2460*2330*3430	2886*2672*3980	3200*2800*4000
9	Machine weight	T	4	6	7	8.5	14	17

No.	Name	Unit	C5225	C5231	CQ5240	C5240	C5250	C5263
1	Max.turning diameter	mm	2500	3150	4000	4000	5000	6300
2	Table diameter	mm	2250	2830	2830	3200	4500	6000
3	Max.height of workpiece	mm	1600	2000	2000	2500	3150	3150
4	Max.weight of workpiece	T	10	10	10	32	50	50
5	Horizontal travel of tool post	mm	1400	1735	2150	2160	50~2765	3415
6	Vertical travel of tool post	mm	1250	1250	1250	1250	1600	1600
7	Power of main motor	mm	55	55	55	55	75	90
8	Overall size of machine	KW	5180*4560*4680	5520*6960*5725	6780*4850*5080	6870*5200*5850	12960×6781×8865	14260*6850*8865
9	Machine weight	T	33	38	39	48	100	110

---
