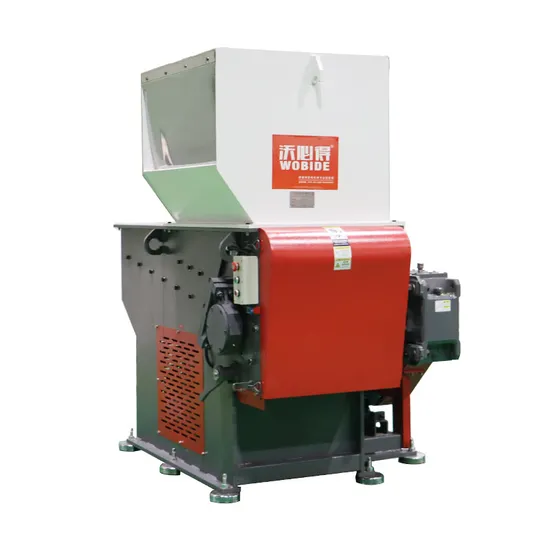

Tyre/Rubber/Wood/Plastic Bottle Waste Recycling Single Shaft Shredder

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
WPS600
Material Processed
Plastic
Plastic Type
PET
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
CE, ISO9001
Speed(R/Min)
78
RAM Travel
600mm
Fixed Blade
2 PCS
Motor Power(Kw)
22
Hydraulic Power(Kw)
2
Screen Mesh Diameter(mm)
30-80
Cutting Chamber Dimension(mm)
600*600
Overall Dimension(L*W*H)(mm)
1750*1400*1780
Weight(Kg)
2800
Main Shaft Tactical Diameter(mm)
280
Main Shaft Length(mm)
600
Transport Package
Film
Trademark
WOBIDE
Origin
China

Product Description

Product Description
Model
WPS600
Main Shaft Length(mm)
600
Tactical Diameter(mm)
280
Main Shaft Speed(rpm)
78
Ram Travel(mm)
600
Rotor Blades(pcs)
39
Fixed Blades(pcs)
2
Motor Power(kw)
22
Hydraulic Power(kw)
2
Screen Mesh Diameter(mm)
30-80
Cutting Chamber Dimension(mm)
600*600
Overall Dimension(mm)
1750*1400*1780
Weight(kg)
2800

Detailed Photos
Application
Application: Pieces from injection molding machine
Thick wall plastic sheet
Pipe
Hollow plastic products
Chemical blue barrel
Plastic pallet
Film
Wood
Kitchen and household waste
Shredder Product Series
Model
WPS600
WPS800
WPS1000
WPS1200
WPS1600
Main Shaft Length(mm)
600
800
1000
1200
1600
Tactical Diameter(mm)
280
400
450
450
645
Main Shaft Speed(rpm)
78
78
78
78
78
Ram Travel(mm)
600
800
1000
1200
1600
Rotor Blades(pcs)
39
51/57
63/92
81/116
140/156
Fixed Blades(pcs)
2
2
3
4
5
Motor Power(kw)
22
37
55/75
75/90
75*2
Hydraulic Power(kw)
2
3
4
4
5
Screen Mesh Diameter(mm)
30-80
30-80
30-120
30-120
30-120
Cutting Chamber Dimension(mm)
600*600
800*800
1000*1000
1200*1250
1600*1400
Overall Dimension(mm)
1750*1400*1780
2430*1720*2480
2880*2180*2570
3350*2300*2660
3800*3300*3250
Weight(kg)
2800
5000
7000
8000
11500

More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
