PP PE Pelletizing Machine; Waste Plastic Extruder; Plastic Granulator

Product Description

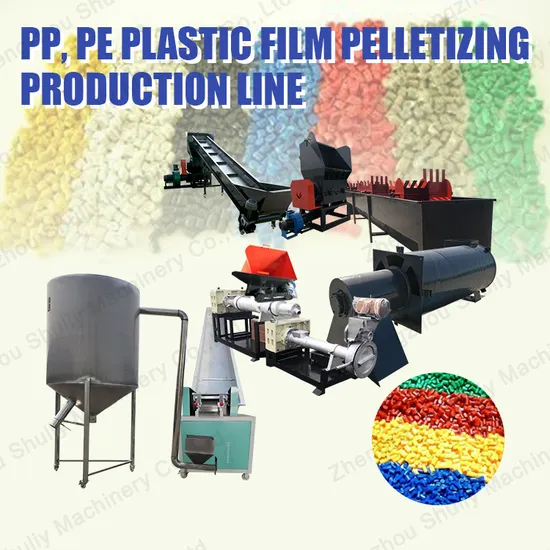

Plastic pellet cutting plastic extruder machine line for soft and hard plastic
The plastic granulating unit is a recyclable type for the professional treatment of PP/PE LDPE, HDPE,
ABS, PVC, ETC. At the same time, it also belongs to environmental protection equipment.
A large number of used woven bags, plastic film, agriculture convenience bags, etc. through the plastic
ranulation unit into the secondary processing program, providing a strong cornerstone for the furniture
industry, daily necessities manufacturing.
1.Belt conveyor: Transfer the raw material to the crusher for crushing and washing
2.Crushing and washing machine:The machine can crush the waste plastic into small piece besides wash them and then
put them into the plastic granule making machine.
3.Conveyor:delivery crushered raw material to the pool cleaning
4.Pool:Clean the crushed raw material and precipitate the impurities.
5.Pool pulley:Slide the crushed raw material of the pool to reach the other end.
6.dewatering machine:Remove the broken plastic from the pool, with the function of dehydration
7.Conveyor+Automatic feeder:converyor send broken raw materials to the feeder,the feeder connect with pellet making
machine,replace the artificial pressure into the granulator
8.Host pellet making machine :The raw material is heated and melted in this machine
9.Second pellet making machine:The melted plastic is drawn through the die in the secondary machine
10.water tank :is used to cool the plastic pellet and send the pellet to next step-plastic cutting machine.
11.Plastic cutting machine:This machine is used to cut the plastic strip into small pieces and the size of pellet can be adjusted
as your requirements.
12.Plastic pellet packing machine:packing the final product(plastic pellet)
13.Conveyor:delivery the plastic pellet to the automatic packing machine
14.Control cabinet:The temperature control cabinet control the temperature of the plastic pellet machine and also make people
asy operate the machine. Parameter of plastic film recycling line

NO.	Item	Technical data
1	Conveyor	Power:3kw Size: Length 5m , Width 0.8m Capacity:1000-1200kg/h
2	PP PE crusher	Model:1000 Power :37kw+11kw Capacity :1000kg/h
3	Belt Conveyor	Power :1.5kw Size : (L) 4m* (W) 0.6mm Capacity:800-1200kg/h
4	Automatic Feeder	Power:3kw Capacity:800-1200kg/h
5	Main Plastic Pelleting Machine	Model : SL-260 Screw diameter : 260mm Screw length:3.6m Motor : 110kw
6	Vice Plastic Pelleting Machine	Model : SL-220 Screw diameter : 220mm Screw length:L1.6m Motor :22+18.5kw
7	Pellet Cutting Machine	Model :LY-F300 Power :7.5kw Capacity: 800kg/h
8	Plastic Pellet Baging Machine	Power :1.5kw Size :1000*1200*1100mm

Company Profile
Our Advantages

Certifications

FAQ
Q1: Are you a manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.
Q4:What if the machine is damaged?
A5: One year warranty and all-round after-sales service. After this deadline, we shall charge at a low cost to keep after-sales service.

---
