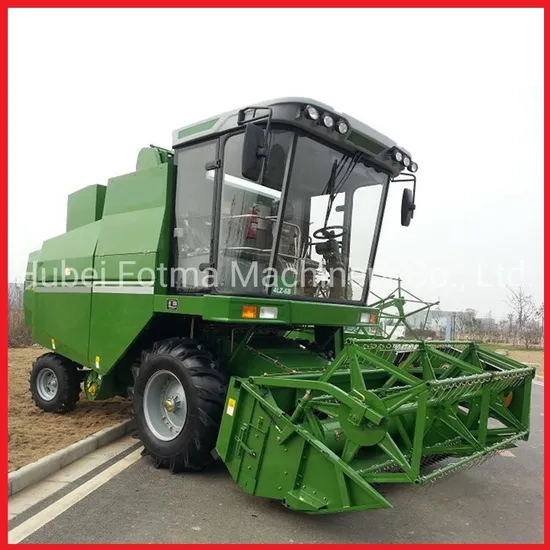

Reversing Radar Large Wheat Combine Harvester with 3500mm Cutting Width (4LZ-8B)

Product Description

Reversing Radar Large Wheat Combine Harvester with 3500mm Cutting Width (4LZ-8B)
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
I. Strong power and high work efficiency
1. Select most famous engine in China, with strong power, high reliability and large reserve torque coefficient.
2. Select 800 serise drive axle with rear wheel drive, has good passing ability and adaptability.
3. Use high unloading grain tube, more suitable for large land harvester.
4. 920 mm dilated axle, more smoothly for feeding, stronger hindling ability,working faster and has higher harvest efficiency.
II. Multi-fuction, more powerful
1. Single longitudinal drum of axial flow threshing and separation device, update threshing unit, enhanced threshing and separation ability.
2. Use angle adjustable plate roller cover of grass guider, higher adaptability for different crops.
3. With cutting and chopping device, strew laid evenly and convenient.
4. Stepless speed changing roller, adjusting rangge is wider, suitable for different crops, achieve multi-fuction.
III. Comfortable and safe driving
1. The man-machine engineering design optimazation, with new A/C cabin, through dust damping and noise reduction process, make driving more comfortable.
2. Use new combined instrument, with the functions of temperature, oil pressure and oil alarm, good effect and high reliability.
3. With GPS system, video camera and reversing radar, driving easy and safe.
5. Technical parameters

Model		4LZ-8B
Feed capacity(kg/s)		8.0
Min. ground clearance(mm)		350
Dimension(L*W*H)(mm)		7960*3880*3485
Mass(kg)		7485
Oil consumption(kg/hm2)		≤35
Cutting width(mm)		3500
Engine	Model	Yuchai TB90B313-3VBS5-YZ engine(140hp)
	Type	4-cylinder in-line direct-injection water cooling
	Rated power(kw)	103
Drive system-hydraulic chassis	Transmission	Mechanical + stepless hydraulic speed regulating (HST)
	Number of shifting positions	Stepless speed
	Walking speed(km/h)	0-5.8
Threshing and cleaning		Axial nail type
Unloading	Grain unloading type	Mechanical unloading
	Grain tank volume(m³)	2.6
Gearbox		Mechanical 4+1

6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipping
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.

---
