28m Small Xugong Hb28b Portable Concrete Pump with Lowest Price

Product Description

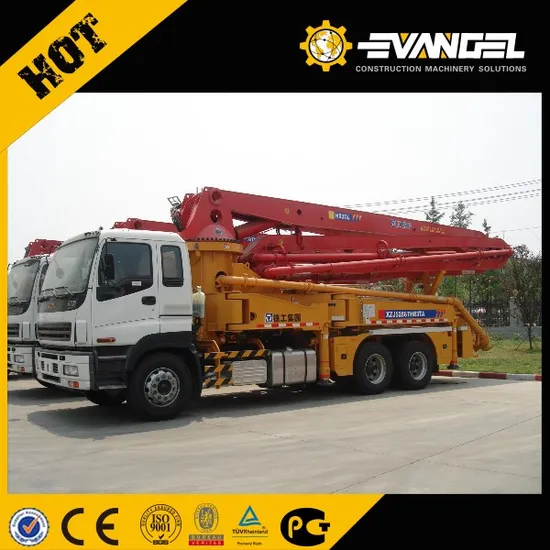

28m Truck-Mounted Concrete Pump

Detailed Description of Truck-Mounted Concrete Pump:
The TruckMounted Concrete Pump which is produced through the cooperation with SERMAC in Italy adopted high quality components to ensure reliability and durability, such as Rothermere hydraulic pump and electric valve, Hana hydraulic distributing valve, ratio valve and safety valve in Germany. The hydraulic system is open circuit with total hydraulic controlled pump feeding and armed frame movement. It is of high reliability and durability for bad working environment.
Its cooling system has high cooling efficiency, and will not allow the temperature in hot weather of the pump feeder to exceed 60 centigrade in summer. The new S valve pump feeding system has strong feeding capacity, and its lubricating system is reasonably designed. This pump car has three ways of control, control panel, lined remote controller, and remote controller. It is easy to operate,
and is flexible, accurate, and steady in frame movement.

The Main Features of Truck-Mounted Concrete Pump:
1 4-section M-shaped boom, with fast expansion speed;
2 X-H shaped outrigger makes the pump suitable for working at narrow site;
3 Computer controlled energy saving technique achieves optimal match between engine power and pump load, saving 20% oil consumption on average;
4 Pump displacement is up to 120m3/h, with stopless regulation which can meet requirements of different working conditions;
5 Electrohydraulic coupling controlled boom vibration absorbing technique greatly prolongs service life of the boom;
6 The original SYMC special controller contributes to much more stable operation of the system;
7 The adoption of the anti-tilting control technology improves intelligent level of the pump and enhances its safety performance;
8 Electrohydraulic buffer, differential pressure induction, open loop hydraulic system full-hydraulic directional control provides for small directional control impact and high reliability;
9 Automatic retraction of concrete piston makes it easier to check or replace the piston;
10 Automatic switch-over between high and low pressure improves pumping applicability;
11 Functional parameters are displayed by color graphics dynamically; fault type is prompted; multiple automatic protections are provided.


Technical Parameters of Truck-Mounted Concrete Pump:

28M Truck-Mounted Concrete Pump
Overall specifications	Model	SY5230THB 28V
	Length	10460mm(34'4"
	Width	2550mm(8'4"
	Height	3780mm(12'5"
	Front axle weight	7760kg(17108 lbs)
	Rear axle weight	15300kg(33730 lbs)
	Dead weight	23060kg(50838 lbs)
Boom & outrigger specifications	Vertical reach	28.1m(92'2"
	Horizontal reach	24.1m(79'1"
	Reach depth	13.6m(44'7"
	Unfolding reach	7.35m(24'1"
	1st section Length	6900mm(22'8"
	Articulation	93°
	2nd section Length	4650mm(18'4"
	Articulation	180°
	3rd section Length	5600mm(18'4"
	Articulation	245°
	4th section Length	6000mm(19'8"
	Articulation	245°
	Rotation	365°
	Outrigger spread L-R--front	6000mm(19'8"
	Outrigger spread L-R--rear	2240mm(16'5"
Pump specifications	Output Low-pressure	120 m3/h(157 yd3/h)
	Output High-pressure	70 m3/h(92 yd3/h)
	Pressure Low-pressure	6.4 Mpa(928 psi)
	Pressure High-pressure	11.8 Mpa(1711 psi)
	Max. strokes per Low-pressure	24 Beats/min
	Max. strokes per High-pressure	14 Beats/min
	Delivery cylinder diameter	230mm(9"
	Stroke length	2000mm(6'7"
	Hydraulic system	Open loop
	Hydraulic system oil pressure	32 Mpa (4640 psi)
	Water tank capacity	600 L(158 gal)
	Pipeline size	125mm(5"
Chassis specifications	End hose length	4m(13'1"
	End hose diameter	125mm(5"
	Chassis model	VOLVO FM400
	Engine type	D13
	Engine power	294kW/1400~1800rpm (400HP/1400~1800rpm)
	Emission standard	Euro IV
	Capacity of fuel tank	300 L(79 gal)
	Displacement	12.8L(3.4 gal)
	Max. speed	80km/h(50mile/h)
	Brake distance	≤10m/30km/h(≤32'10" 19mile/h)

---
