Jwell Extrusion Blow/Blowing Molding/Moulding Making Machine for Plastic HDPE Making Solar Pool Float/Swimming Float Kickboard

Product Description

Product Description

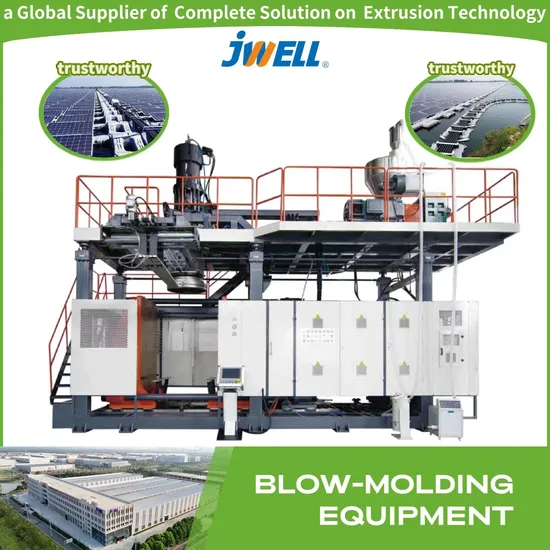

JWELL-BM Solar Float Blow Molding Machine 1.Suitable for producing different kinds of blow molding PV floating.
2.Optional bottom sealing,product eject,core-pulling movement ele·
3.Adopt high output extrusion system,accumulating die head
4.According to the different product size, customized theplaten type and size
5.Hydraulic Servo control systemOptional double layer co-extrusion system
Control system
B&R Austria human-machine interface and parison programmer.
can adjust within 300 points.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brand JinHaiLuo all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Adopt fully servo driving motor.
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Open&Closing system Adopt fully servo driving motor
OPTIONAL FUNCTIONS
1.Multi-layer, multi-cavity.
.
2.Weighing feeding material system3.Screen changer system.
4.Online leak detection, visual detection, packaging and other auto-mation equipment.
Product photos
Technical parameters

Technical parameters
Model	Unit	BM500	BM1000
Die head structure	Accumulating type
Main screw diameter	mm	120	135
Max plasticizing capacity (PE)	kg/h	350-450	550-650
Driving motor	Kw	132	160
Accumulating volume	L	26	45
Oil pump motor power	Kw	30	45
Clamping force	KN	800	1800
Space between platen	mm	500-1400	700-1900
Platen size W*H	mm	1020-2400	1600*2400
Max.mould size	mm	800-2500	1500*2500
Heating power of die head	Kw	25	38
Machine dimension L*W*H	m	8.5*5.5*5.8	10.28*6.2*7.3
Machine weight	T	45	63
Total power	Kw	240	302
Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.

packaging&Shipping
In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured

Company Profile
JWELL is a global supplier of complete solutions on extrusion technology.
Oriented from Shanghai, JWELL Mlachinery Co., Ltd is the largest manufacturer of extrusion machinery in China, its 8production bases are located in Jiading District of Shanghai, Zhoushan City of Zhejiang Province, Taicang city of jiangsuProvince, Liyang City of Jiangsu Province, Haining city of Zhejiang province,Chuzhou City of AnHui Province, Quaniao cityof AnhuiProvince and Thailand. Totally covering areas more than 1,000,000 square meters.t has more than 3000staffs, about 580 technicals and managing staffs with over 500 national patents, We produce more than 3000 advancedextrusion lines every year, which were exported to 120 countries and regions over the world. Jiangsu Jwell Intelligent Machinery Co., Ltd. is a high-tech manufacturer dedicated to the research, development and manufacture of plastic extrusion equipment. Our main products are all kinds of plastic sheet, plate, film extrusion equipment. We not only have professional R&D team, experienced technicians, but also advanced production and processing base and standardized assembly workshop. Our customers are all over China as well as overseas countries and regions. Based on the enterprise spirit of "Excellent Quality, Perfect All", we are constantly exploring the new field of extrusion.
