OSE OSK OSG OSR Orbital Saw Bit Pipe Cutting Machine

Product Description

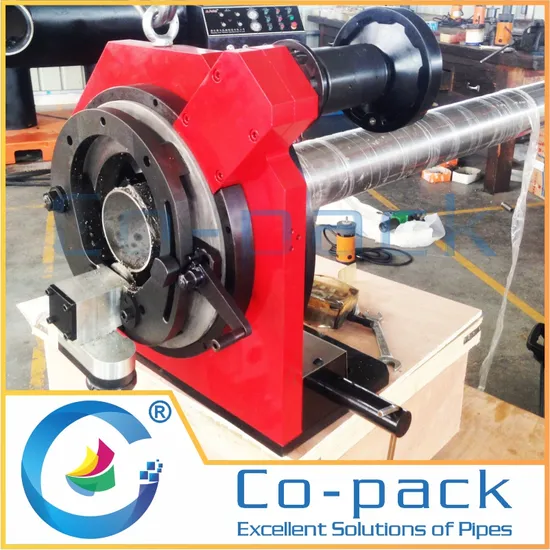

Orbital Pipe Cutting Machine
Overview
Orbital pipe cutting machine is the best choice for stainless steel thin-wall pipe cutting. This machine adopts Metabo motor drive to ensure strong power. It is necessary equipment for pipe welding prep. Optimize design, save space, operate simply, install quickly. Self-centering pipe clamping device, saw blade cutting head can cut off the pipe by rotating around the steel pipe once a ring. The end face is absolutely vertical without burrs, and the steel pipe is not deform, providing quality assurance for the welding of steel pipes. Cutable materials: carbon steel, alloy steel, non-ferrous metals, engineering plastics, etc., widely used in semiconductor, electronics, beer, pharmaceuticals, biotechnology, beverages, dairy, pressure vessels, chemical, oil and gas, ships, water treatment and other industries processing.
Features
Quickly install the blade
Cold cutting, don't influence the pipe's material
Vertical incision without deformation, burr-free end surface
Deformable clamping device, automatic centering, quick clamping of the pipe
Option beveling saw for pipe cutting and beveling
Unique orbital cutting, thin wall tube cutting best equipment
High safety, stationary pipe, cutting head rotation completed
Dry cutting, kept cleaning, be welded directly after cutting
Saw blade compatible with AXXAIR, +GF+, DCS and other brand pipe cutting machine
Capability
Pipe cut off
Pipe beveling
Cutting and beveling
The key words of this product: Pipe cutting machine Tube cutting machine
Model and Specification

Model	Working Range	Wall Thickness		Rotating
Manual	OD mm	CS mm	SS mm	rpm
OSE-120	Ф15~120	≤12	≤4	80~120
OSE-170	Ф30~170	≤12	≤4	80~120
OSE-220	Ф60~225	≤12	≤4	80~120
OSE-320	Ф140~330	≤12	≤4	80~120
OSE-420	Ф215~420	≤12	≤4	80~120
OSE-520	Ф315~520	≤12	≤4	80~120
OSE-620	Ф346~630	≤12	≤4	80~120
OSE-720	Ф486~760	≤12	≤4	80~120

Above parameters just for reference only, not acceptance criteria.
Model and Specification

Model	Working Range	Wall Thickness		Rotating
Automatic	OD mm	CS mm	SS mm	rpm
OSK-120	Ф15~120	≤12	≤4	80~120
OSK-170	Ф30~170	≤12	≤4	80~120
OSK-220	Ф60~225	≤12	≤4	80~120
OSK-320	Ф140~330	≤12	≤4	80~120
OSK-420	Ф215~420	≤12	≤4	80~120
OSK-520	Ф315~520	≤12	≤4	80~120
OSK-620	Ф346~630	≤12	≤4	80~120
OSK-720	Ф486~760	≤12	≤4	80~120

Above parameters just for reference only, not acceptance criteria.
Model and Specification

Model	Working Range	Wall Thickness		Rotating
	OD mm	CS mm	SS mm	rpm
OSR-120	Ф15~120	≤12	≤5	80~120

Above parameters just for reference only, not acceptance criteria.
Model and Specification

Model	Working Range	Wall Thickness		Rotating
	OD mm	CS mm	SS mm	rpm
OSG-120	Ф10~120	≤12	≤7	80~120

Above parameters just for reference only, not acceptance criteria.
Power Supplies

Saw blade drive motor Brand: Metabo Electric requirements: 220-230V, 50-60Hz, 1P Power: 1.3KW Speed: 6-speed adjustable

Tooling
Material: M42
Standard: 2 cutting blades
Optional: beveling saw blade 30°, 37°, 45°

Standard Cutting Blade	Optional Beveling Saw Blade

---
