Kme10 New Hydraulic Mini Excavator Bucket Price 1000kgs

Product Description

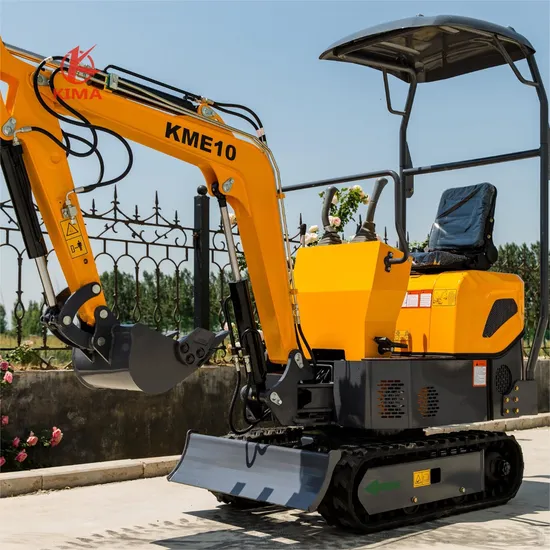

KME10 Mini Excavator
Excavator engine:KOOP
Excavator dimension:2876x880x2220mm
Excavator weight:960KGS
Excavator Bucket capacity:0.023m³
Description

KME10
Type of cab		Canopy
Bucket capacity KME10		m3	0.023
Bucket width		mm	400
Machine weight		kg	960
Dimensions	Overall length	mm	2876
	Overall height	mm	2220
	Overall width	mm	880
	Ground clearance	mm	132
Engine	Brand	KOOP
	Model	KD192F-1
	Displacement	L	0.499
	Output	kW/rpm	7.0/3000
Working ranges	Max Digging height	mm	2600
	Max Dumping height	mm	1830
	Max digging depth	mm	1715
	Max. Digging radius	mm	3065
	Min .swing radius	mm	1483
	Max digging force (Arm)	kN	4.6
	Max digging force (Bucket)	kN	7.2
Track	Type		Rubber track
	Rubber shoe width	mm	180
Undercarriage	Track length	mm	1233
	Traveling speed	km/h	2
	Gradeability	deg	58/30
Swing speed		rpm	13
Ground pressure		kpa	20
Dozer size	Width	mm	840
	Height	mm	240
	Lifting capacity (Height/Depth)	mm	150/200
Hydraulic pumps	Type		1 Gear pump
	Flow rate	L/min	18
	Hydraulic pressure	Mpa	16
Swing motor			Cycloidr motor
Travel motor			Cycloidr motor
Fuel tank capacity		L	7
Hydraulic oil tank capacity		L	14.5

Detailed Photos


Packing&Shipping

Certification

Company Profile
Linyi Kima Machinery CO.,LTD is a professional manufacturer of wheel loader and excavator in China.
Our leading products include 0.6 to 3 ton wheel loader and mini excavator.All products have passed the following certificates:ROPS&FOPS,CE,TUV.
Now our machines has a good market in Australia, SouthAmetica, Agentina, Canada, Germany, Norway, Finland, Sweden, Netherlands, Poland, Russia, etc.
After Sales Service
1.We will supply the whole day online service to foreign customers. 2. Within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.
Other Products

KME12 PRO Engine:KUBOTA Dimension:2965x990x2230mm Weight:1220KGS Bucket capacity:0.023m³	KME12 Engine:YANMAR Dimension:3060x850x2250mm Weight:1220KGS Bucket capacity:0.023m³	KME15 Engine:YANMAR Dimension:3160x850x2220mm Weight:1350KGS Bucket capacity:0.04m³
KME20 Engine:KUBOTA Dimension:3865x1050x2270mm Weight:1950KGS Bucket capacity:0.06m³	KME22 Engine:KUBOTA Dimension:4170x1300x2280mm Weight:2200KGS Bucket capacity:0.1m³	KME28 Engine:YANMAR Dimension:4159x1550x2560mm Weight:2600KGS Bucket capacity:0.08m³

FAQ:Q1. What Payment terms would you accept? Normally we accept L/C, or /T 30% down payment, balance to be paid against BL copy and loading pictures.
Q2. What is your delivery time? For standard machines, the delivery time is Within 25-35 days after receiving the down payment.
Q3. What services would you offer if I buy from you? Our trained Professional service team offers high-quality, on-time service in a very friendly way. For a good customer
Experience, the content of pre-sales, includes the recommendation on the basis of the right products in physical condition. All you have to do is to inform us of your needs.
Q4. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q5:What to do if there is a problem with the product? 1. We offer 1 year or 1000 hours running time warranty. 2. We offer technical support for free all the time.
3. We can send the parts to the customers by express delivery as soon as possible.

---
