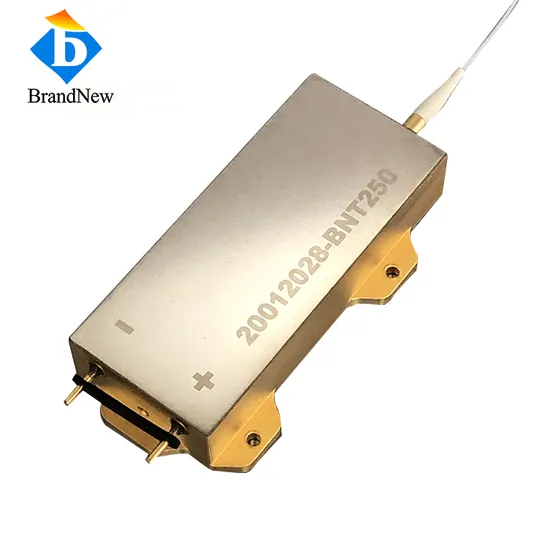

Factory Price 915nm 250W Qcw Fiber-Coupled Laser Diode Module with 135um Fiber

Product Description

915nm 250W QCW Fiber-Coupled Laser Diode Module with 135um Fiber Quick details:
For QCW mode, highest power is 250W
For CW mode, highest power is 180W

With a high efficiency, stability and superior beam quality
Factory burn-in tested for 48hours.One year warranty for workmanship and materials after receipt of items.
Compact packages and commercially recognized formats allow easy integration into the existing products.

Specification Item No.: FC915DL250

Optical
Center Wavelength	915±15nm
Output Power	250W
Spectral Width FWHM	6nm
Fiber
Fiber Bend Radius	>60mm
Fiber Core Diameter	135um
Fiber Numerical Aperture	0.22NA
Fiber Connector	Bare end
Fiber Length	1.5m
Electrical
Operating Current Iop	25~26A
Threshold Current Ith	1.1A
Operating Voltage Vop	25~26V
Power Conversion Efficiency	48%
Thermal
Operating Temperature(Non-Condensing)	15~35ºC
Storage Temperature(Non-Condensing)	-30~70ºC
Wavelength Temperature Coefficient	0.35nm/ºC

Dimension
About us Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.
Core Competency
Diode Packaging Beam Shaping
Reliability Testing Efficient Cooling FAQ Can you provide technology supports?
Yes, we have a professional technology supporting team for your timely services.
What about the delivery?
We can offer the door to door services by air, just depend on your actual request. Such as DHL, UPS, TNT, FEDEX
What is the lead time?
Normally 3-5 days. Customized products need 15 working days.
Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available

What is your terms of payment?
T/T or Western Union, for your choice.
Do you offer guarantee for the products?
Yes, all products have been tested before shipping out.
Lifelong technique support. One year warranty.

---
