B to B PET Bottle Recycling Line (TL6000)

Product Description

Big Capacity PET Bottle Washing Line (Bottle to Bottle Grade)
Key Words: Plastic Machine,Plastic Machinery, Plastic Recycling Machinery.pet bottle recycling line, pet bottle recycling machine,plastic recycling line,plastic recycling system
Boretech is a resource environmental enterprise which integrates manufacture, engineering and equipment supply. Boretech system covers our 25 years manufacturing experience, and the products are upgraded constantly. The management idea of Boretech is to promote resource recycling over the world and create best commercial value to encourage energy saving & carbon reducing and protect our earth.
Boretech is the only supplier of PET bottle washing system for food grade Bottle to Bottle Project in Asia.
Description :
The Process is used to recycle big capacity and stable quality raw material, especially for PSF manufacturer and recycled POY manufacturer with big capacity.

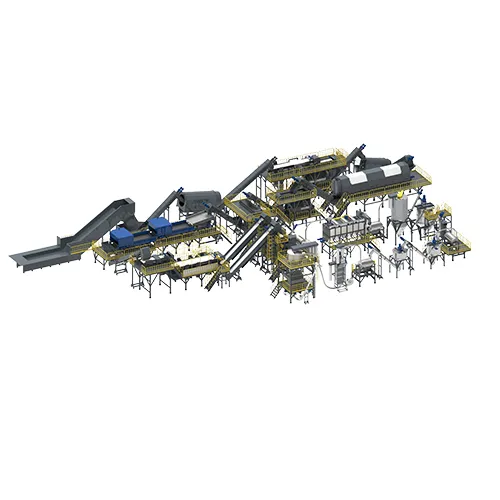

The Process Flowchart for B2B grade pet bottle washing line
Debaling- Dry Trommel -Metal Separation-Label Separation -Bottle Pre-washing- -Automatic Sorting-Manual Sorting-Wet Grinding-Hot Flotation- Friction-Continuous Rinsing-Drying-Dust Removal - Metal Separation- Automatic Flakes Sorting- Packing
Specification:

Estimated Plant Parameters
Input Capacity (kg/h)	Required Area (m2)	Installed Power (Kw)	Required Water (kg/h)	Required Steam (kg/h)	Requied Compressed Air(m3/min)	Manpower
500	800	170	0.75	200	0.5	8
1500	1200	400	2.25	700	0.5	12
3000	1800	600	4.5	1300	0.7	18
6000	2800	900	9	2300	1	30
9000	4200	1400	14	3200	1.5	40

Production Consumption Table
No.	Item	Average Energy Consumption per ton Flakes
1	Electricity consumption (KWH)	150	160	170	180
2	Steam (kg)	450	500	550	650
3	Washing Detergent (kg)	12	12	12	14
4	Water consumption (ton)	1.5	1.5	1.5	1.5

* The above parameters are calculated based on the standard configuration; bottle bales types, quality and factory management level will affect the final actual consumption
* Water consumption parameters are calculated based on using wastewater reuse system
Products and Service:
-0.5 t/hr-6 t/hr B2B grade PET bottle recycling system
-0.5 t/hr-6 t/hr fiber grade PET bottle recycling system
-15 t/d-100 t/d polyester staple fiber production line

Products Feature:
Greater capacity - Greater than 6t/hr input capacity of PET bottle recycling system with full automation and intelligentialize
Water saving - provide waste water treatment, recycling 1 ton flakes only need 0.5t water
Bottle to fiber integration -put into waste bottles and get high quality recycled fiber, reasonable process and smart applications can reduce manpower and make sure the quality of fiber.
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Boretech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries.Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ
Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.

---
