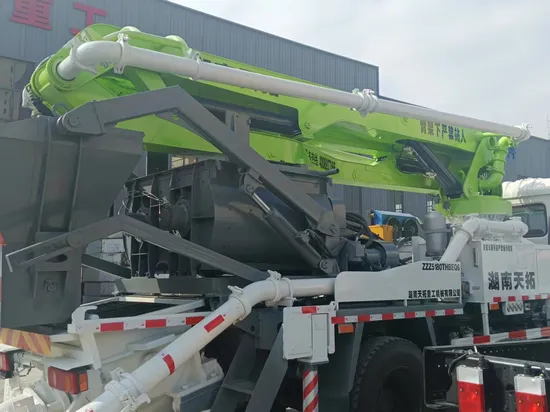

Heavy-Duty Concrete Boom Pump with Long Service Life

Product Description

Truck Boom Pump Professional manufacturer in Changsha, Hunan
20 years+ Production & Export Experience
Solid technical foundation and independent innovation to ensure product quality
Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts
18m, 25m, 26m, 28m, 30m, 33m, 35m, 37m, 39m, 40m, 45m, 50m etc.
Technical parameters

MODEL	UNIT	26M	33M	37M	39M	45M	50M
Overall length	mm	8900	10400	10400	10400	11900	12480
Overall width	mm	2300	2480	2500	2500	2550	2550
Overall height	mm	3600	3650	3650	3650	4300	4000
Total weight	kgs	15800	21000	21000	26000	34000	35000
Boom form		5RZ	5RZ	5RZ	5RZ	6RZ	6RZ
End hose length	m	3	3	3	3	3	3
First arm length/ angle	mm/ o	5850/ 89	7250/ 90	7200/ 90	8470/ 90	9430/ 90	10065/ 90
Second arm length/ angle	mm/ o	5800/ 180	5800/ 180	6000/ 180	7860/ 180	7284/ 180	7850/ 180
Third arm length/ angle	mm/ o	5500/ 180	5500/ 180	5700/180	6000/ 180	6900/ 180	7550/ 180
Fourth arm length/ angle	mm/ o	2000/ 270	6200/ 235	6630/ 235	7000/ 245	8348/ 245	9810/ 240
Fifth arm length/ angle	mm/ o	2800/ 90	6200/210	6636/ 220	7000/ 180	4100/ 225	5570/ 220
Sixth arm length/ angle	mm/ o	/	/	/	/	4274/ 90	4460/ 110
Hydraulic system type		Open type system	Open type system	Open type system	Open type system	Open type system	Open type system
Distribution valve form		S tube valve	S tube valve	S tube valve	S tube valve	S tube valve	S tube valve
Theory output capacity	m3/h	60	80	80	100	100	110
Maximum aggregate size	mm	40	40	40	40	40	40
Theory pumping pressure	Mpa	10	10	10	10	10	10
Hopper capacity	L	680	680	680	680	680	680
Recommended concrete slump	mm	140-230	140-230	140-230	140-230	140-230	140-230
Hydraulic oil cooling		Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling

Truck boom pump with mixer in other lengths can also be produced according to your needs.
Chassis, equipment, components etc. all can be further negotiated according to your requirements.
FAQ
1.Q:Are you factory or trading company?
A: We are factory in Changsha, Hunan.
2.Q: What is your main oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for structure parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: We provide video technical support, and we can send technicians to your country if necessary. We have local after service team in some areas.

---
