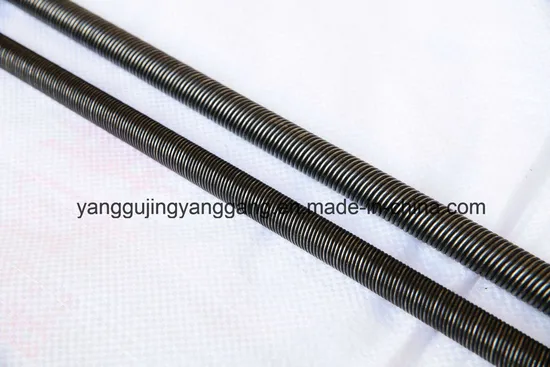

Flexible Inner Shaft/Flexible Drive Shaft/Flexible Shafts for Drain Cleaning/Transmission Shaft

Product Description

Flexible shaft is a shaft with little rigidity and free bending flexibility. Used to connect a different axis and two axes that are not in the same direction or have relative motion to transmit rotational motion and torque. It can transfer rotational motion and torque flexibly to any position.
Flexible shaft usually consists of a core wire in the middle and several layers of wire alternately wound outside. Each layer has 4~12 steel wires, and the adjacent 2 layers of steel wires are wound in opposite directions. Flexible shaft products distinguish left and right rotation direction, suitable for different rotation directions of the motor and ensure the life of the flexible shaft.
material : 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant

Diameter (mm)	Tolerance (mm)	Number of Layers	Loading Moment (N @ m) (Sample 500mm Long)	Weight (kg/ 100m)
2.0	+0.02 -0.02	3/5	0.8	1.8
2.5		3/5	1.0	2.8
3.2		3/5	1.3	4.6
3.8		3/5	1.5	6.5
5.0	+0.00 -0.05	3/4/5	1.8	11.3
6.0		3/4/5	2.4	16.2
6.5		4/5/7	2.9	18.7
8.0		4/5/6/7	7.5	28.8
10		4/5/6/7	22.5	45.5
12		4/5/6/7	39.0	66.5
13		4/5/6/7	50.5	77.5
16		4/5/6/7	115.0	114
18		4/5/6/7	160	145
The flexible shafts not listed in the chart can be customized

---
