Automatic Bottle E-Liquid Eye Drop Filling Machine

Product Description

Product Description
This machine is mainly used for filling production line of test tubeand other small-dose products, which can realize automatic feeding,peristaltic pump filling, positioning cap, high-speed cap turning and automatic labeling. The machine adopts mechanical transmission to ensure accurate and stable operation, low noise, low loss, and no air pollution.The whole machine is made of 304 stainless steel, in line with GMP requirements.Product Parameters

Model	PX-BFC850	PX-BFC851	PX-BFC852
Filing head number	2	4	8
Capping head number	1	2	2
Filling volume	2-120ml	2-120ml	2-120ml
Capacity	15-35 bottles/min	20-60 bottles/min	30-70 bottles/min
Filling accuracy	≤ ±1%	≤ ±1%	≤ ±1%
Pass rate	≥ 98%	≥ 98%	≥ 98%
Power supply	1 Ph. AC220V/ 50/60Hz	1 Ph. AC220V/50/60Hz	1 Ph. AC220V/ 50/60Hz
Total power	1.9 KW	2.1 KW	2.5 KW
Net weight	About 600kg	About 700 kg	About 750 kg
Overall Dimension	L2400x W1500x H1800mm	L2800x W2000x H1900mm	L3200x W1500x H1900mm

Detailed Photos
Workflow:
bottle feeding→filling→adding dropper cap→screw capping→self adhesive labeling→ribbon printing (optional)→inkjet printing (optional)→bottle collecting

Features:
1. Can customize products according to customer bottle samples.
2. Peristaltic pump measuring, accurate measurement, easy to control.
3. Filling system has suction / anti-drip device. 4. Easy to adjust filling parameter with PLC and touch screen automation control system. 5.The whole body is made of 304 stainless steel, compact structure, beautiful appearance, with stable and reliable performance,easy maintenance. 6. Adopted piston quantitative, use well-known brand accessories, filling accuracy, adaptability. 7.The whole line is compact, high speed, high degree of automation, save the manpower cost.
8. It complies with CE certification.
1.Bottle Feeding & Collecting Turntable
Automatic feeding empty bottle entering filling machine & Collecting the finished bottle product.Customized turntable diameter size for client bottleVariable speed adjustment2. Intelligent control panel and touch screen
control panel
Working parameters can be set easily without the need to train operators, which helps improve work efficiency. Operation panel language can be customized in different languages, if you need, please contact us. 3.Anti-drip filling nozzle

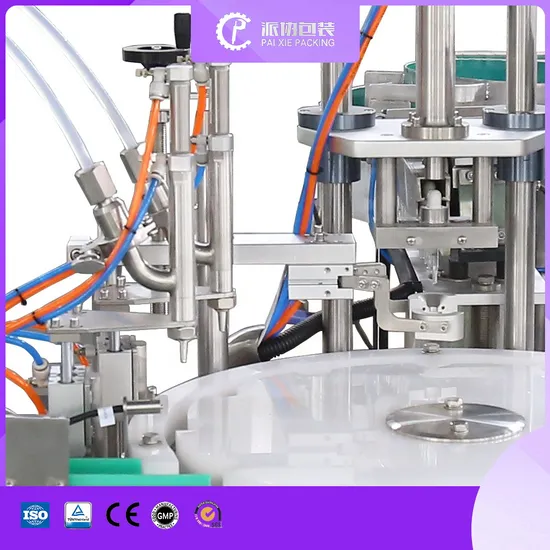

Equipped with two filling nozzles,andeach one can be controlled separatelyThe filling nozzle can be customizedaccording to filling materials,makesthe machine works better with yourproducts This machine is equippedwith high quality filling pump,ensuresfilling accuracy.
4.Lids taking device
Automatic take cover, put cover 5.Screw cover equipment Servo motor control filling
Servo motor control fillingcapping ,finished product passrate 99% 6.Height adjustable
Fit for different height bottle ,easy to adjust and more flexible 7.Card bottle rotary table
The rotary dish can help to fix andtransport bottles during working.This dish should be customized according to bottle size.Changedifferent rotary dish for different kinds of bottles.8.Detection electronic eye
Equipped with high quality electriceye,this can be used to detect bottles and make the machine start or stop to work.The sensitivity of the electric can be adjusted by the adjusting part. Improves working accuracy.
9.Automatic Bottle Labeling Machine
Connect with the production line
Matching to production line speed.
Can Labeling on any specified location.
Support do customized labeling effect. Product Application
Our Advantages
We'll change into your standard plug before shipping,such as American plug, UK plug, European plug...
Complimentary installation kit
Complimentary installation kit
https://paixiefillingmachine.en.made-in-china.com/company-Shanghai-Paixie-Packaging-Machinery-Co-Ltd-.html
FAQ
Q1: Are you manufacturer?A1: Yes, we are the manufacturer of mixer and filling lines over 10 year's experience.
Q2:How can I know your machine has good quality?
A2:We will send video of the machine working condition, video chatting see our workshop and also you can come to visit our factory.
Q3:What is your advantage?
A3: 1)Competitive price; 2)Excellent technical support;3)Great after-sale service; 4)Over 10 years experience
Q4:What is the payment terms?
A4:30% deposit, the balance before delivery.
Q5:How long of the delivery time?
A5: Normally 40-50 working days depend on the detail machine you request.
Q6:What is your warranty time?
A6:One year. Life-long maintenance services and technical support.
Q7:Can you offer overseas service?
A7: Yes, if request.We suggest online problem solving firstly, if the problem still shows we can arrange engineer to go to your factory to solve the issue.

---
