Stainless Steel AISI304 AISI316 Fencing Hook Eye Jaw Wire Rope Cable Fitting Rigging Hardware European Type Frame Oc Oo Cc Drop Forged Turnbuckle

Product Description

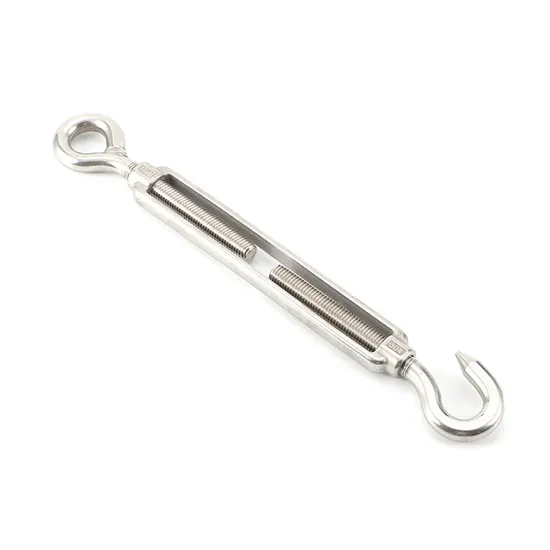

Product Description Product name: stainless steel turnbuckle
Feature: turnbuckles used to tighten up wire rope
Material: stainless steel 304
Product introduction: Turnbuckle, stretching screw or bottle screw is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems.It normally consists of two threaded eyelets, one screwed into each end of metal frame, one with a left- hand thread and the other with a right.hand thread. The tension can be adjusted by rotating the frame, which causes both eyelets to be screwed in or out simultaneously, without twisting the eyelets or attached cables. Turnbuckle is most used in applications which require a great deal of tension; they can range in mass from about ten grams for thin cable used in a garden fence, to thousands of kilograms for structural elements in buildings and suspension bridges.

Details of the figure	Detailed sizes
	Size(A)	B	F	S	WLL
	mm	mm	mm	mm	kg
	M4	58	8	7	25
	M5	70	9	8	40
	M6	90	10	9	100
	M8	120	14	13	200
	M10	150	16	15	300
	M12	200	18	15	500
	M16	250	21	20	800
	M20	300	25	22	1200

Details of the figure	Detailed sizes
	Size(A)	B	F	WLL
	mm	mm	mm	kg
	M4	58	8	25
	M5	70	9	40
	M6	90	10	100
	M8	120	14	200
	M10	150	16	300
	M12	200	18	500
	M16	250	21	800
	M20	300	25	1200

Details of the figure	Detailed sizes
	Size(A)	B	S	WLL
	mm	mm	mm	kg
	M4	58	7	25
	M5	70	8	40
	M6	90	9	100
	M8	120	13	200
	M10	150	15	300
	M12	200	15	500
	M16	250	20	800
	M20	300	22	1200

Detailed Photos
FAQ Q: What is a stainless steel turnbuckle?A: A stainless steel turnbuckle is a type of hardware used for adjusting the tension or length of ropes, cables, or wires. It consists of two threaded eye bolts with a central body that can be rotated to adjust the length.Q: What are the benefits of using a stainless steel turnbuckle?A: Stainless steel turnbuckles are highly durable, corrosion-resistant, and able to withstand harsh environmental conditions. They are also easy to install and adjust, making them a versatile and reliable choice for various applications.Q: How do I choose the right size of stainless steel turnbuckle?A: The size of the turnbuckle you need will depend on the diameter and length of the ropes or cables you are working with. It is important to choose a turnbuckle that can handle the weight and tension of your specific application.Q: How do I install a stainless steel turnbuckle?A: To install a stainless steel turnbuckle, simply attach one end to the fixed object using the eye bolt, and the other end to the moving object using the other eye bolt. Then, rotate the central body of the turnbuckle to adjust the tension as needed.Q: Can stainless steel turnbuckles be used in outdoor applications?A: Yes, stainless steel turnbuckles are ideal for outdoor applications due to their corrosion-resistant properties. They can withstand exposure to moisture, saltwater, and other harsh environmental conditions without rusting or deteriorating.Q: Are there different types of stainless steel turnbuckles available?A: Yes, there are various types of stainless steel turnbuckles available, including jaw and jaw turnbuckles, eye and eye turnbuckles, hook and eye turnbuckles, and hook and hook turnbuckles. Each type is designed for specific applications and requirements.

---
