Product Description
Product Description

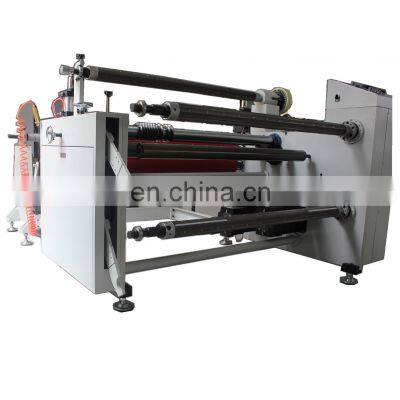

automatic slitting machine for paper (slitting rewinder) 1. Technique Data Machine Speed : 150m/min Max material feeding width : 1600mm Feeding Diameter : 800 mm Film Diameter : 400mm Rewinding diameter : 450mm Slitting accuracy :±0.1mm Voltage:380V 50HZ Main Motor Power :3kw (1 motor power) ( if running reversible need 2 motor) Total Power: 8kw Raw material Max hole diameter: 3” compress air source:(0.4-0.6)Mpa(customer-owned) Finished products Min. Width by standard slitting :25MM Main Machine size :2600*2300*1300mm Feeding Machine size : 2150*880*780mm Weight : 2.5T 2. Function Profile 1) frequency control of motor speed, operation more easy. Control more accurate. 2) Double receiving roller center take up , rewinding 3) Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use 4) Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M 5) Independent fan waste discharge. 6) If Double motor configuration,The scroll of rewinding can be positive and negative transfer . DP-1300/1600/1800 multifunction laminating and slitting machineFuncional characteristics:This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling,with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. Purpose:It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc. Model1800 multifunction laminating and slitting machine1600 multifunction laminating and slitting machineMax Feeding Width ( mm )18001600Main Engineer Power ( KW )66Speed (T/M )8080Feeding diameter ( mm )1000800Rewinding diameter ( mm )450450precision ( mm )±0.10±0.10Power380V 50HZ380V 50HZ Slitting Machine More Detail Picture
>>
