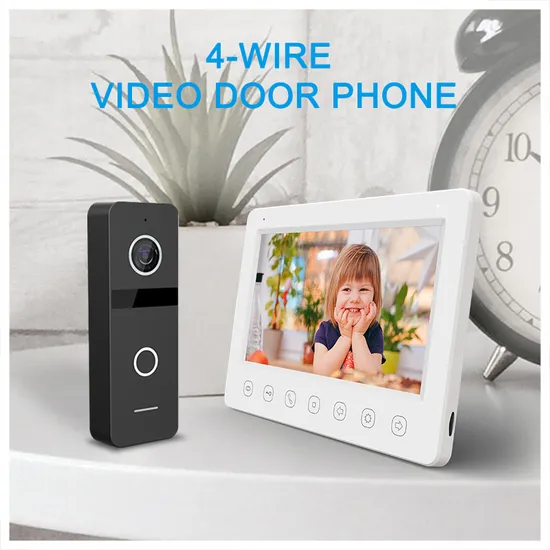

4-Wire 1080P Smart Home Video Doorphone Security System Door Bell Intercom

Product Description

Product Description
Detailed Photos
Description:-Monitors:1. 7 inch color TFT digital screen2. Hands free3. Touch buttons4. Surface-mounted5. External or Internal power adapter(optional)6. 4 wires 7. 13 polyphonic ring-tones switch freely8. Supports maximum length of line connection: 100m9. Power Supply: AC100-240V 50/60Hz
DC15V, 12W10.Power consumption: 9W(Max),2.5W(standby) 11. TFT resolution: 1024*600 12. Dimension: 188*136*22mm Doorbells: 1.Surface/Corner mounting 2.Zinc alloy housing 3.Resolution: 1080P 4.Type of signal: AHD/CVBS/CVI/TVI (Optional) 5.Waterproof IP66 6.Working temperature:-30ºC to +60ºC 7.Dimension: 131x46x20mm 8.Wide viewing angle 9.1Vp-p75Ω video output 10.Power voltage DC 10-15V 11.Power consumption 2.5W 12.Anti-sabotage Product Parameters
Functions:-Monitors:1. Lock control / Broadcast / Calendar / Alarm clock2. Capture& record about 100pcs images with internal flash3. Monitor doorbell or CCTV cameras4. Make calls between monitors5. Monitor listening to another monitor6. DVR function, with both Video and audio7. Answer machine function8. Auto take pictures from doorbell camera9. Supports Message leave10 Can manual take pictures or record videos from doorbell, even you are talking with the visitor11.Multimedia manager12.Photo frame13.Outdoor panel unlock release14.Indoor monitor unlock releaseType of signal: CVBS, AHD/TVI/CVI(up to 1080P) Optional Max. supports:1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras2).1 outdoor doorbell+4 indoor monitors+3 CCTV cameras Doorbells:- 1). Surface/corner construction 2). Supports lock control Specification:-Monitors:

Screen	7" screen
TFT resolution	1024*600
Signal support	800TVL / 720P / 1080P
Signal formats	CVBS / AHD
Motion Detection	Supports
Power supply	AC100-240V 50/60Hz DC15V, 12W
External Micro SD Card	128GB
Operation temperature	0ºC to +40ºC
Operation humidity	0% - 95%
Connection	4 wires
Power	AC100V-240V / DC15V, 0.8A
Dimension	188*136*22mm

Doorbells: Doorbells:

Subscribers quantity	1
Camera	1/3'' Color CMOS
Angle of view	125°
Protection Standard	IP66
Type of signal	CVBS / AHD
Resolution	800TVL/1080P(Optional)
Construction	Surface / 30° angled mounting
Operating temperature	- 30 ºC to + 60ºC
Connection	4 wires
Lock	NO/NC (MAX AC/DC30V 4A)
Power	DC10-15V
Dimension	131x46x20mm

All our models are passed CE, RoHS, REACH certificates, and with 15 months warranty, you are welcome to visit our factory or take samples to test our quality.

website: eeguard.en.made-in-china.com Company Profile
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.

Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 500PCS/Model to print your logo & giftbox.

Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25-30 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 15 months after the shipment

---
