Plastic No 98/2 LDPE Film Cleaning Recycling Processing Granulation Pelletizing Line Plastic LDPE LLDPE HDPE Film Bag Granulation Line

Product Description

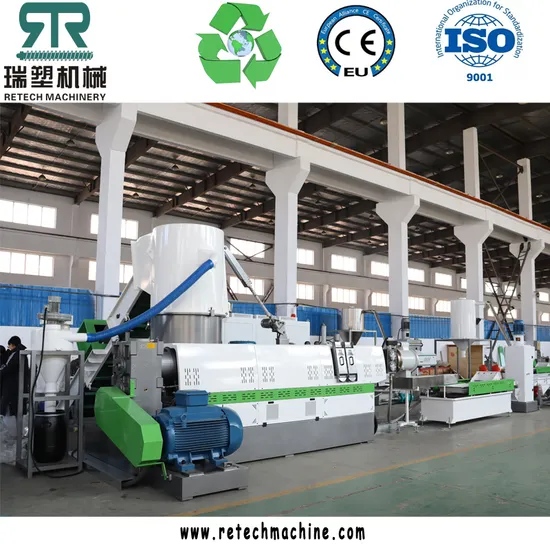

Plastic NO 98/2 LDPE Film Cleaning Recycling Processing Granulation Pelletizing Line
Product Description
Why Choose an HDPE Film Pelletizing Machine? Waste Reduction: Converts HDPE film waste into valuable raw material.
Resource Efficiency: Supports sustainable manufacturing by reusing recycled materials.
Customizable: Can be tailored to meet specific production needs and output requirements.
This machine is an essential tool for businesses involved in plastic recycling, enabling the transformation of HDPE film waste into high-quality pellets for reuse in various industries.
Application:
PE, PP film, Silk, Flakes (≤0.5mm), HDPE Bags, etc.
Note, our RC series compactor granulator can be pull strip cutting method,or water ring cutting method for option

Consist of:
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet
Product Parameters

Model	Diameter of screw	PE capacity	PP capacity
TCDJ-85	Φ85mm	150-200kg/h	100-150kg/h
TCSJ-85/85	Φ85/85mm	150-200kg/h	100-150kg/h
TCDJ-100	Φ100mm	280-350kg/h	250-300kg/h
TCSJ-100/100	Φ100/100mm	280-350kg/h	250-300kg/h
TCDJ-130	Φ130mm	480-550kg/h	400-500kg/h
TCSJ-130/130	Φ130/130mm	480-550kg/h	400-500kg/h
TCDJ-160	Φ160mm	650-800kg/h	600-750kg/h
TCSJ-160/160	Φ160/160mm	650-800kg/h	600-750kg/h
TCDJ-180	Φ180mm	800-1200kg/h	750-1000kg/h
TCSJ-180/180	Φ180/180mm	800-1200kg/h	750-1000kg/h

Certifications
Features
Technical Specifications: Capacity: Typically ranges from 100 kg/h to 1,000 kg/h, depending on the machine size and model.
Power Consumption: Varies based on the machine's capacity and design.
Pellet Size: Usually 2-5 mm in diameter, customizable based on requirements.
Automation Level: Can range from semi-automatic to fully automatic systems.
Material Compatibility: Specifically designed for HDPE films but can often handle other polyolefins like LDPE and PP.
Packaging & Shipping
Our Advantages

---
