Full Automatic Paper Pile Turner Machine with Vibrating/Air/Jogging

Product Description

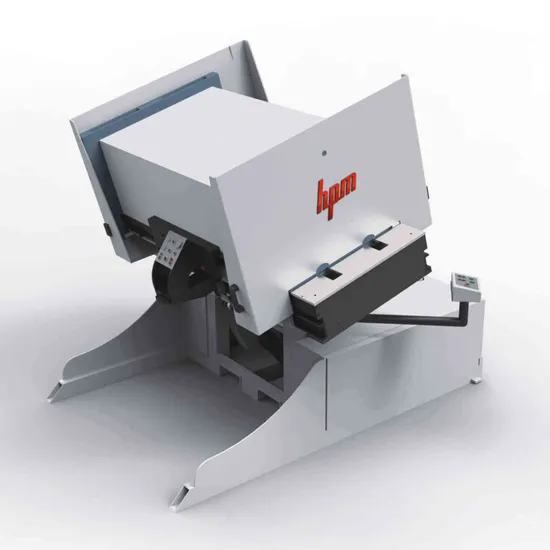

Pile Turner SFZ1300/1650/1800 LA

Machine Performance
1.Pile turner can be used for paper turning, blowing, foreign matter removal, drying, alignment and paper shaking. It is applicable to various kinds of gram weights and different kinds of paper.
2. Based on our years of experience and constant technological innovation, we could ensure the advancement and stability of the product. With a special body design, the product is very stable and durable.
3.paper pile can be rotated automatically thanks to the efficient servo motor and reducer. It could improve the working efficiency of paper piling significantly with the help of enhanced hydraulic system.
4.product is fitted with an integrated operation panel, with which, all functions such as paper pile turning, rotation, paper vibration and dust removal can be finished.

Introduction to equipment functions
1.Automatic turning and rotation functions.
2.The touch screen has integrated different operation functions, and can be used for setting parameters directly, conveniently and quickly.
3.Auto and manual modes can be switched based on user's operation requirements.
4.The touch screen is integrated with functions such as turning, rotation, clamping, opening and flap alignment.
5.Servo backup plate is used to sense paper pile automatically and finish alignment of paper pile quickly.

Functions	Function Characteristics
Blowing	Stepless adjustment of air blowing + Settings of blowing times
Vibration	Stepless adjustment of vibration
Air Nozzle	Stepless adjustment of speed
Position selection	180° rotary feeding + Home position feeding

Technical Parameter

Model	SFZ1300LA	SFZ1650LA	SFZ1800LA
Max. Width of plate	1300mm	1650mm	1800mm
Max. paper size(L*W)	1200*900mm	1550*1100mm	1700*1300mm
Min. paper size(L*W)	500*400 mm	600*500mm	600*500mm
Max. paper height(including two plates)	1600mm	1600mm	1630mm
Min. paper height(including two plates)	700mm	800mm	850mm
Max. Lifting capacity	2000kg	2500kg	3000kg
Rated voltage	380/220V	380/220V	380/220V
Gross power	12KW	31KW	31KW
Net weight	3400KG	4700KG	5100KG
Machine size(L*W*H)	2920*2020*2220mm	3450*2410*2430mm	3650*2560*2630mm
Packing size(L*W*H)	3100*2200*2100mm	3460*2500*2100mm	3660*2650*2100mm
