Br Solar 560W Cell Solar Panel Module 580W Mono Solar Panel

Product Description

Class A+ Solar Modules Tier 1 Half Cell Solar Panel System Mono PERC 400W 410W 450W 550W 670W Mono Half Cut Crystalline Solar Panel

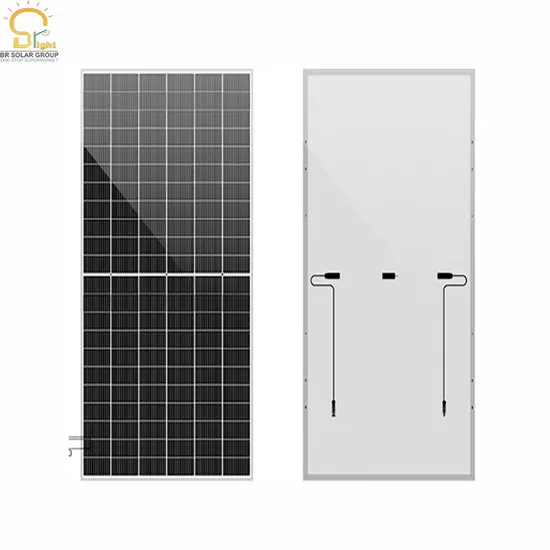

Mono Solar Panels 182mm 144cells BR 550W~580W High Efficiency
ELECTRICAL DATA(STC)

Module Type	BR550M10		BR555M10		BR560M10		BR565M10		BR570M10		BR575M10		BR580M10
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power- Pmax(W)	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Open Circuit Voltage - Voc(V)	550	416	555	420	560	424	565	427	570	431	575	435	580	438
Short- Circuit Current - Isc(A)	49.90	46.68	50.05	46.81	50.20	46.94	50.35	47.06	50.50	47.18	50.65	47.31	50.80	47.44
Voltage at Pmax -Vmp(V)	14.00	11.17	14.07	11.21	14.14	11.25	14.21	11.29	14.28	11.33	14.35	11.37	14.42	11.41
Current at Pmax - Imp(A)	41.96	39.43	42.12	39.64	42.28	39.85	42.45	40.06	42.62	40.27	42.78	40.48	42.94	40.71
Module Efficiency -ηm(%)	13.11	10.55	13.18	10.59	13.25	10.63	13.32	10.67	13.39	10.71	13.46	10.75	13.53	10.79
Power Tolerance(W)	(0,+4.99W)
Maximum System Voltage(V)	1500Vdc (IEC )
Maximum Series Fuse Rating (A)	25A

STC : Irradiance 1000W/m 2,Cell Temperature 25ºC,Air Mass 1.5 NOCT : Irradiance 800W/m 2,Ambient Temperature 20ºC,Air Mass 1.5, Wind Speed 1m/s
Detailed Photos
Certifications
BR Solar panel comply with TUV (IEC61215, IEC61730) . Also received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (OHSAS 18001:2007) from both DNV GL and GZCC.Through close cooperation with international authorities like TUV, Intertek, CNAS and SGS, BR Solar established in-house "Testing and R&D center", continuously polishes products with innovation and advanced manufacturing technology,improves the testing ability of PV industry chain and analyzing ability covering the entire life cycle of solar industry.
Our Factory
Strict QC System
100% Makes 100% High Quality Solar Panels
100% Cells Sorting
Ensure Color and Power Difference.
100% Inspection
Before and After Lamination, intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination, ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring.
100% "Zero"
Defects Objective Before Shipment, most stringent acceptance criteria and tightest tolerance.
100% Optimal Testing
Ensure 0~+5W Positive Power Tolerance. Comprehensive QC information management system with barcode ID.
Loading and transportation
Project Cases
FAQ : Question 1: What kind of Solar Cells we have?Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.Question 2: What is the lead time?Answer 2:Normally 15 working days after advance payment.Question 3: What is your monthly capacity? Answer 3:Monthly capacity is about 200MW.Question 4:What is the warranty period, how many years?Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.Question 5: How is your technical support? Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.Question 6:How to become your agent? Answer 6:Contact us through email, we can talk details to confirm.Question 7: Is sample available and free?Answer 7:Sample will charge cost, but the cost will be refund after bulk order.
THANKS FOR YOUR TIME AND YOUR INQUIRY WITH BR SOLAR!!

---
