Product Details
Product Description
Product Description

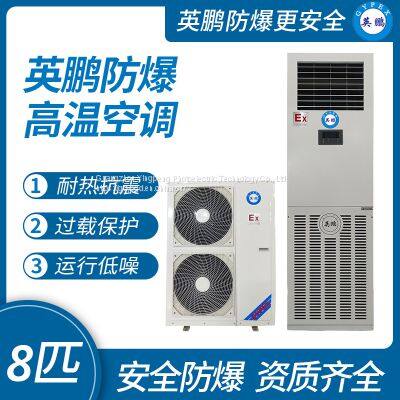

1、 Product parameters
Brand: Yingpeng GYPEX
Type: explosion-proof high-temperature air conditioner
Model: BFKT-16LG
Number of horses: 8
Refrigeration capacity: 16000W
Heating capacity: 10000W
Indoor circulating air volume: 2900m ³/ H
Net weight of indoor unit: 180kg
Net weight of outdoor unit: 250kg
External dimensions: 860x410x1580
External dimensions: 1400x650x1630
2、 Main features
Designed specifically for high-temperature working environments, it is mainly used in four major vehicles in the metallurgical industry, steel mills, field operation vehicles, and coking industry. The driver's cab has an ambient temperature below 80 ℃
The equipment operation room and electrical room can control the indoor temperature between 20 ℃ and 35 ℃. The product has characteristics of resistance to vibration and high temperature.
1. The explosion-proof high-temperature air conditioning can control the indoor temperature between 20 ℃ and 35 ℃.
2. Specially designed condensers and evaporators have characteristics such as vibration resistance and high temperature resistance.
3. Totally enclosed compressor is adopted, which has the advantages of high Volumetric efficiency, good reliability, low noise and high energy efficiency ratio.
4. The fan adopts a dual inlet centrifugal fan with high air volume, low noise, and anti vibration.
5. The system is equipped with high and low voltage protection, phase tolerance protection, and overload protection for each motor to ensure the safe operation of the unit.
6. The pipeline interface design is simple and convenient to install, leak proof, and has good sealing performance.
7. Adopting a user-friendly interface operating system and synchronous cooling mode, making operation more convenient.
3、 The execution standards for this series of products are as follows
GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment
GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
GB3836.4-2010 Explosive Atmospheres Part 4: Equipment Protected by Intrinsic safety Type "i"
GB3836.9-2006 Electrical Equipment for Explosive Gas Atmospheres Part 9: Encapsulated "m"
GB3836.15-2000 Electrical Equipment for Explosive Gas Atmospheres Part 15: Electrical Installations in Hazardous Locations (Except Coal Mines)
4、 Applicable scope
Special high-temperature explosion-proof air conditioning is suitable for flammable and explosive places such as power engineering, scientific research, petroleum, chemical industry, factories, warehouses, etc.
a. The altitude does not exceed 2000m;
b. Applicable environment: temperature below 80 degrees Celsius, without corrosive gases;
c. There are explosive hazardous areas with Class IIA and IIB, T1 to T4 combustible gases, vapors, and air mixed together.
>>
