| Negotiable | 1 Piece (MOQ) |

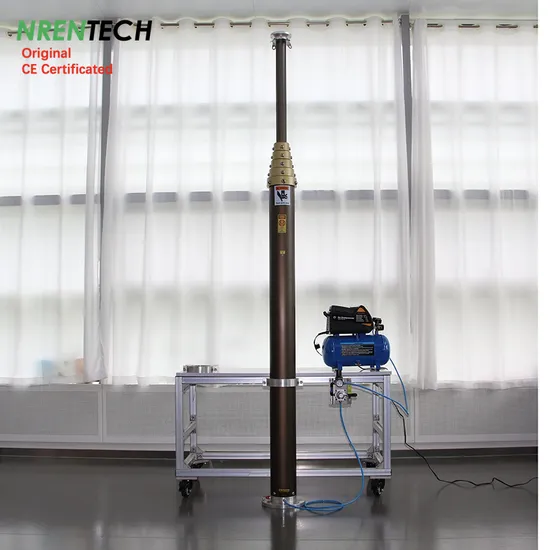

| 9m Non-Lockable Pneumatic Telescopic Mast-30kg Payload | ||||||
| NR-2.2-9-30N-6S-51-140 | ||||||
| Extended Height | : | 9 | m | 29.52 | ft | |
| Retracted Height | : | 2.2 | m | 7.2 | ft | |
| Vertical Payload | : | 30 | kg | 66 | lb | |
| Working air pressure | : | 0.15 | Mpa | 22 | PSI | |
| Collar Type | : | Non-Locking (Automatic Extention, Automatic Retraction) | ||||
| Inside Electric Wires | : | \ | ||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 51 | mm | 2.0 | in | |
| Basement section diameter | : | 140 | mm | 5.5 | in | |
| Mast Weight | : | 50 | kg | 110 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| \ | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 9m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | \ | |||||
| data update on 20230701 | ||||||
