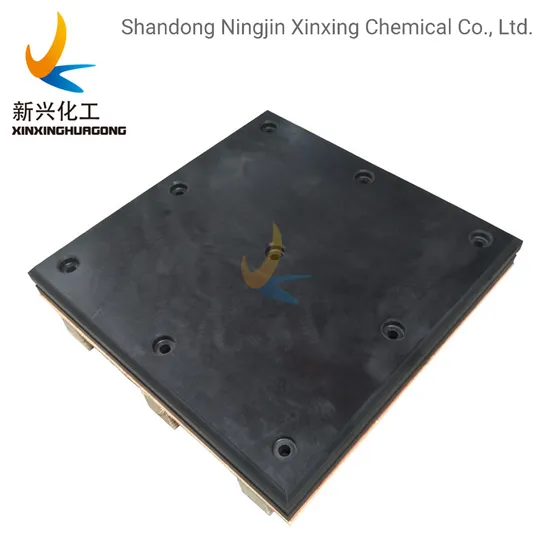

Hot Sale UHMWPE Marine Dock Fender Face Pads Panel

Product Description

Hot sale UHMWPE Marine dock fender face pads panel
UHMWPE or HDPE Sliding Fender pads for Marine fender
XINXING UHMWPE1000 ultra high molecular weight polyethylene (UHMW-PE) is the first choice material for facing steel fender panels and other heavy duty applications. They also used in corner pad for marine fender cover/ coner marine fender pads for jetty . It combines very low friction with excellent impact strength and a wear resistance much better than steel. Most popular is XINXING UHWMPE1000-DS which is 'double-sintered' and work-hardened for extra durability. The standard colour is black, but if other colours are needed then UHMWPE 1000-V 'virgin' grade also comes in yellow, white, grey, blue, green and red. UHMW-PE1000 materials are compounded to resist ozone and UV radiation. They do not degrade or rot .
Introduction:
Ultra-high molecular weight polyethylene(UHMWPE) dock fender could avoid the impact damage between ships and dock. Because of the high impact resistance performance, UHMWPE dock fender instead of the traditional steel ones is widely used in ports and docks at home and abroad.
Our UHMW PE-1000 marine fenders are made from virgin uhmwpe material, which is much superior to wood and rubber in building marine constructions or coastal protective structures. UHMW PE-1000 marine fenders allow vessels to glide easily along the surface, protecting hulls and dock structures. Impervious to marine bore worms with minimum cleaning.
UHMWPE Marine Fender PadCharacters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of HDPE plate with advanced machine.
5.Different shaped HDPE plate also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
UHMWPE Fender pads applications:
Bridge buttress protection
* Pontoon pile guide bearings
* Fast-launch lifeboat slipways
* Beltings for smaller workboats
* Fender panel facing pads
*Fender pile rubbing strips
*UE-V fender shields
*Facing strips for jetties and wharves
*Lock entrance and lock wall protection
*Mitres on lock gates
Technical data:

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23°C	%	≥300
Temperature Resistance	°C	-269 to +85
Melt Temperature	°C	130-140

Detailed Images
Our Factory
FAQ 1. Q: Are you trading company or manufacturer ?
A: We are factory.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.

---
