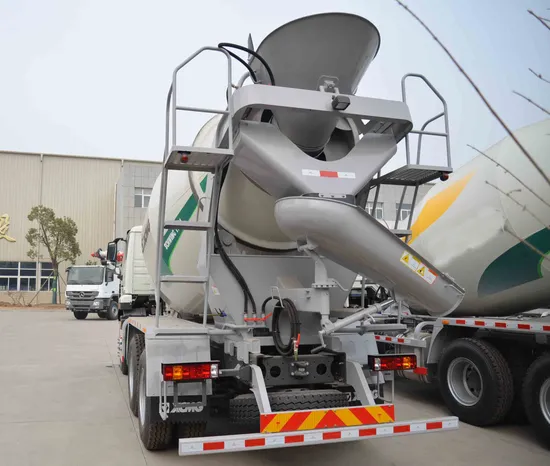

Construction Machinery Truck-Mounted Concrete Mixer 6m3

Product Description

new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation. 1. Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused bynonuniform concrete. 2. Optimized chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design. 3. Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.
Specification

Category	Model	Unit	G06K
Performance of mixing drum	Geometric volume	m³	11.6
	Max. diameter of drum	mm	2250
	Drum length	mm	4217
	Mounting tilt angle	°	15
	Rotary speed	r/min	0~14
	Charging speed	m³/min	≥3
	Discharging speed	m³/min	≥2
	Residual ratio of discharging	%	<0.7
	Range of slump	cm	5~21
Hydraulic system	Oil pump		World-famous brand
	Motor		World-famous brand
	Speed reducer		World-famous brand
	Hydraulic circuit		Closed type
Water supply	Volume of water tank	L	450
	Way of water supply		Air pressure
Overall machine	Chassis brand		SinoTruck
	Chassis model		ZZ1255N3246B1
	Steering wheel		Left steering wheel
	Curb mass	kg	12250
	Driving type		6×4
	Wheelbase	mm	3225+1350
	PTO way		Flywheel PTO
	Outline dimension	(L*W*H)mm	8240*2500*3740
Engine	Model		WD615.69
	Rated power	Kw/r/min	247
	Displacement	L	9.726
	Emission standard		II

---
