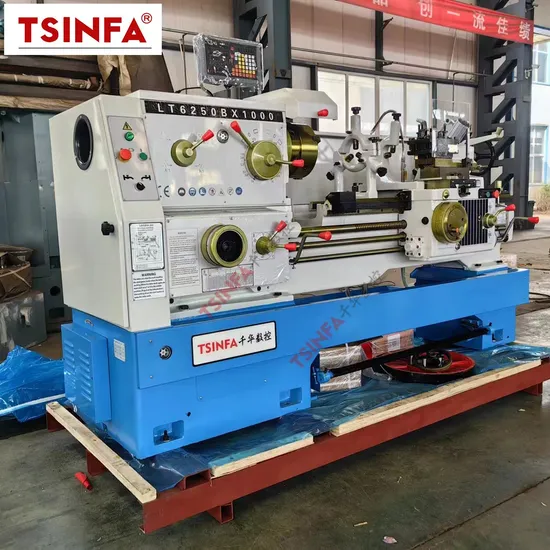

Horizontal Metal Universal Manual Lathe Machine with Factory Price Lt6250*1000mm

Product Description

Product Description
Our lathe machine suitable for turning inner and outer cylindrical surfaces, conical surfaces, and other rotating surfaces, turning various metric, imperial, modular, and radial threads, and capable of drilling and pulling oil grooves. It is a highly versatile horizontal lathe widely used for batch processing of various shaft and disc parts.

Model			Unit	LT6240		LT6250		LT6266		LT6280
				LT6240B		LT6250B		LT6266B		LT6280B
						LT6250C		LT6266C		LT6280C
Max .Swing over bed			mm	400mm		500mm		660mm		800mm
Max .Swing over cross slide			mm	210mm		300mm		400mm		540mm
Max .Swing over gap			mm	630mm		720mm		880mm		1020mm
Effective gap length			mm	210mm		210mm		210mm		210mm
Max .length of work piece			mm	750/1000/1500/2000/2200/3000/4000mm
Width of bed			mm	400mm
Section of turning tool			mm	25×25mm
Spindle	spindle speed		mm	16-1400rpm(24steps)
	hole through spindle		mm	52mm ,(80mm),[105mm]
	spindle taper		mm	No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed		mm	64kinds(64 kinds)(for each)
	range of metric threads		kinds	(1-192mm)44kinds (44 kinds)
	range of inch threads		kinds	(2-24tpi)21kinds (21kinds)
	range of module threads		kinds	0.25-48(39kinds)(module 39 kinds)
	range of diametral pitc threads		kinds	1-96DP(37kinds)(37 kinds)
Tailstock	Max. tailstock spindle travel		mm	150mm
	tailstock spindle diameter		mm	75mm
	taper of tailstock spindle center hole			NO.5 (MT5)
Main motor			kw	7.5KW(10HP)
Packing dimensions		Overall dimensions for 750mm	mm	2550×1140×1750		2550×1140×1750
(L×W×H mm)		Overall dimensions for 1000mm	mm	2700×1140×1750		2700×1140×1750		2700×1140×1750		2700×1140×1750
		Overall dimensions for 1500mm	mm	3200×1140×1750		3200×1140×1750		3200×1140×1750		3200×1140×1750
		Overall dimensions for 2000mm	mm	3700×1140×1750		3700×1140×1750		3700×1140×1750		3700×1140×1750
		Overall dimensions for 2200mm	mm	4030×1140×1750		4030×1140×1750		4030×1140×1750		4030×1140×1750
		Overall dimensions for 3000mm	mm	4800×1140×1750		4800×1140×1750		4800×1140×1750		4800×1140×1750
		Overall dimensions for 4000mm	mm	5680×1140×1700		5680×1140×1700		5680×1140×1700		5680×1140×1700
Weight(kg)			mm	G.W. N.W.		G.W .N.W.		G.W. N.W.		G.W. N.W.
		Overall dimensions for 750mm	mm	2100 1990		2170 2060
		Overall dimensions for 1000mm	mm	2190 2070		2260 2140		2570 2450		2720 2560
		Overall dimensions for 1500mm	mm	2350 2220		2420 2290		2810 2640		2980 2800
		Overall dimensions for 2000mm	mm	2720 2570		2790 2640		3050 2880		3260 3087
		Overall dimensions for 2200mm	mm	2800 2600		2940 2790		3390 3180		3490 3287
		Overall dimensions for 3000mm	mm	3300 3200		3450 3300		3930 3687		4220 3887
		Overall dimensions for 4000mm	mm	3500 3400		3750 3600		4580 4200		4850 4500

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping

---
