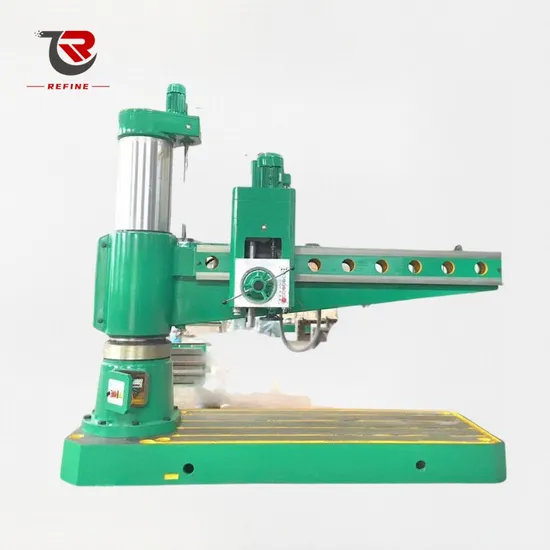

Z30125 Big Radidal Drilling Milling Mavchine

Product Description

PRODUCTION DESCRIPTION
Radial Drilling Machine is improved on the base of the new series products,it is the universal machine for general purposes, suitable for drilling, counter boring, reaming, spot facing and tapping on medium or large sized parts. Boring is also possible where such technological equipment is available.
Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time. Perfect safety protector and outer column protection are available. Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance. With wide range of speed and feed, with manual, power & fine feeds. The feed of machines are very easily engaged & disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability. MACHINE PICTURES
PARAMETERS

Item		Unit	Z3032x10	Z3040	Z3050×16	Z3063	Z3080	Z30100	Z30125
Max. drilling diameter		mm	32	40	50	63	80	100	125
column surface	Max.	mm	1000	1600	1600	2050	2500	3150	4000
	Min.	mm	200	350	350	450	500	560	600
Distance from spindle nose to base surface	Max.	mm	1064	1215	1270	1600	2000	2500	2500
	Min.	mm	264	315	370	400	550	700	700
Spindle travel		mm	250	315	315	400	450	500	560
Taper of spindle bore (Morse)		No	No.4 Morse	No.4 Morse	No.5 Morse	No.5 Morse	No.6 Morse	No.6 Morse	Metric 80
Spindle speed		r/min	71-1800	25-2000	25-2000	20-1600	16-1250	8-1000	6.3-800
Spindle speed series			8	16	16	16	16	16	22
Spindle feed rate series		mm/r	0.13-0.54	0.04-3.2	0.04-3.2	0.04-3.2	0.04-3.2	0.06-3.2	6.3-800
Main power		kw	2.2	3	4	5.5	7.5	15	18.5

MACHINE FEATURES
In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism.
It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. Casting temper aging treatment. High hardness
