Product Details
Product Description
Product Description

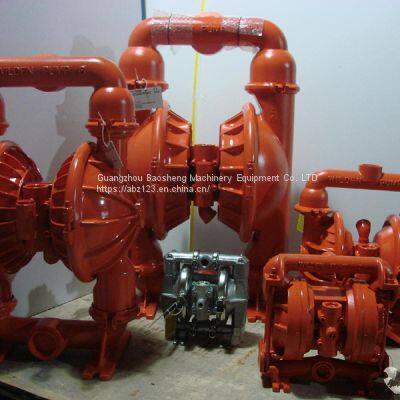

The simple design of the Wilden Pneumatic diaphragm pump makes it easier to operate, with flow and pressure changes simply by adjusting the supply air pressure and volume. Because Wilton diaphragm pump vulnerable parts and the design is simple, durable, so it is easier to troubleshoot. Over the past 50 years, Wilton has been dedicated to technological improvements that make diaphragm pumps more reliable and easy to service. Single pump in the number of parts wearing parts in the industry is the least. This ensures that customers reduce direct maintenance costs and downtime costs during repair projects
Advantages of the WILDEN pump
Unbalanced valve patented design, will not stop unbalanced piston, no dead point
Plastic self lubricating air system, no need for oil lubrication
Minimum energy consumption, very low compressed air leakage
Special fast exhaust structure, fully ensure that the air valve does not freeze, improve the air utilization rate
The number of parts and wearing parts in the single pump is the least in the industry, unique clamp design, fast and convenient disassembly
The patented stiffener design gives the WILDEN diaphragm the longest life and highest temperature resistance in the industry
Passed ISO9001 certification, and the European Community CE certification
The universal advantages of pneumatic diaphragm pump
No electric spark, can run empty, can be self-priming start work, without complex control, simple operation, self-priming height up to 6M
Can be selected by the shell of the pump body and diaphragm material to transport different characteristics of strong acid, alkali, strong organic solvent liquid medium
No dynamic seal, no pollution of the material, low shear force, not easy to damage the material structure
Submersible, mobile, easy handling, can be used as a mobile pump
No rotating parts (or bearings), no mechanical shaft seal, no connectors, low maintenance cost
The delivery speed can be changed by changing the gas volume
The conveying height can be changed by changing the pressure
Can transport high viscosity, high viscosity liquid medium
Can switch the outlet at any time, not afraid of blockage
Automatic pressure balancing (without pressure relief valve)
1. Suitable for the chemical industry in high, medium and low viscosity of all kinds of acid, alkali and corrosive fluid, benzene, ketones and esters and other solvents transport. Due to the use of compressed air as power, flow, pressure adjustment range is wide;
2. It is suitable for the transportation of all kinds of fluids in flammable and explosive environment, because the pneumatic diaphragm pump does not generate electric sparks, does not generate and accumulate heat in the work;
3. It is suitable for the transportation of all kinds of precious liquid, high harm, high corrosion and other dangerous materials in fine chemical industry, because the pneumatic diaphragm pump has no dynamic seal structure, completely separated from the outside world, no material leakage;
4. Suitable for harsh working conditions such as oil fields, mines, construction sites containing solid particles of wastewater, no blockage, no overload, no leakage worries;
5. It is suitable for conveying all kinds of materials in light and mobile occasions without foundation. Small footprint, simple and economical installation;
6. It is suitable for the transportation of high purity and high clean materials, because the pneumatic diaphragm pump does not need lubrication, no lubricant pollution of materials. Such as in pharmaceutical intermediates and products, laboratory pharmaceutical delivery;
7. It is suitable for fluid transportation with unstable chemical properties, because the pneumatic diaphragm pump has very low shear force on the material and does not destroy the material structure. Such as transport photosensitive materials, flocs, crystal liquid
8. With automatic batch pumping and metering functions;
9. It is suitable for feeding pump of plate and frame filter press.
11, because the pneumatic diaphragm pump may pass certain particles, can idling self-priming, explosion-proof and other characteristics, widely used in coal mine, used to transport sewage
TZ2 series diameter: 1/2"
Common models: TZ2 / AAAAA/TNU/TF/ATF, TZ2 / AAAAA/TNU/TF/ATF / 0014, TZ2 / AAAAA/BNS/BN/ABN, TZ2 / AAAAA/BNS/BN/ABN / 0014, TZ2 / AAAAA/WFS/WF/AWF, TZ2 / A AAAA/WFS/WF/AWF / 0014, TZ2 / PPAAA/WFS/WF/KWF, TZ2 / PPAAA WFS/WF/KWF / 0014, TZ2 / AAAAA/NES/NE/ABN, TZ2 / AAAAA/NES/NE/ABN / 0014, TZ2 / P KAAA/WFS/WF/PWF, TZ2 / PKAAA/WFS/WF/PWF / 001
Maximum flow: 81GPM(306.6Lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 5 "(1.5 m)
Maximum particle size available: 1/16"(1.6mm)
Diaphragm material: butyl rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
TZ4 series Caliber: 1 1/2"
Common models: TZ4 / AAMAA/TNU/TF/ATF, TZ4 / AAMAA/TNU/TF/ATF / 0014, TZ4 / AAMAA/BNS/BN/ABN, TZ4 / AAMAA/BNS/BN/ABN / 0014, TZ4 / AAMAA/WFS/WF/AWF, TZ4 / A AMAA WFS/WF/AWF / 0014, TZ4 / PPMAA/WFS/WF/KWF, TZ4 PPMAA/WFS/WF/KWF / 0014, TZ4 / AAMAA/NES/NE/ABN, TZ4 / AAMAA/NES/NE/ABN / 0014, TZ4 / P KMAA WFS/WF/PWF, TZ4 / PKMAA WFS/WF/PWF / 0014, TZ4 / PKMAA/WFS/WF/PWF / 0400, TZ4 / PKMAA/WFS/WF/PWF / 0404, TZ4 / SSMAA TNU/TF/STF, TZ4 / S SMAA/TNU/TF/STF / 0014, TZ4 SSMAA/TNU/TF/STF / 0400, TZ4 / SSMAA/TNU/TF/STF / 0070
Maximum flow: 81GPM(306.6Lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 18 "' (5.5 m)
Maximum particle size available: 3/16"(4.76mm)
Diaphragm material: butyl rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
TZ8 series caliber: 2"
Common models: TZ8 / AAAAA/TNU/TF/ATF, TZ8 / AAAAA/TNU/TF/ATF / 0014, TZ8 / AAAAA/BNS/BN/ABN, TZ8 / AAAAA/BNS/BN/ABN / 0014, TZ8 / AAAAA/WFS/WF/AWF, TZ8 / A AAAA/WFS/WF/AWF / 0014, TZ8 / PPAAA/WFS/WF/KWF, TZ8 / PPAAA WFS/WF/KWF / 0014, TZ8 / AAAAA/NES/NE/ABN, TZ8 / AAAAA/NES/NE/ABN / 0014, TZ8 / P KAAA/WFS/WF/PWF, TZ8 / PKAAA/WFS/WF/PWF / 0014, TZ8 / PKAAA/WFS/WF/PWF / 0400, TZ8 / PKAAA/WFS/WF/PWF / 0404, TZ8 / SSAAA/TNU/TF/STF, TZ8 / S SAAA/TNU/TF/STF / 0014, TZ8 SSAAA/TNU/TF/STF / 0400, TZ8 / SSAAA/TNU/TF/STF / 0070
Maximum flow: 163GPM(617.0lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 21 '(6.35 m)
Maximum particle size available: 1/4"(6.35mm)
Diaphragm material: butadiene rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
TZ15 series caliber: 3"
Common models: TZ15 / AAAAA/TNU/TF/ATF, TZ15 / AAAAA TNU/TF/ATF / 0014, TZ15 / AAAAA/BNS/BN/ABN, TZ15 / AAAAA/BNS/BN/ABN / 0014, TZ15 / AAAAA/WFS/WF/AWF, TZ15 AAAAA/WFS/WF/AWF / 0014, TZ15 / PPAAA/WFS/WF/KWF, TZ15 / PPAAA/WFS/WF/KWF / 0014, TZ15 / AAAAA/NES/NE/ABN, TZ15 / AAAAA/NES/NE/ABN / 0014, TZ15 / PKAAA/WFS/WF/PWF, TZ15 / PKAAA WFS/WF/PWF / 0014, TZ15 / PKAAA/WFS/WF/PWF / 0400, TZ15 / PKAAA/WFS/WF/PWF / 0404, TZ15 / SSAAA/T NU/TF/STF, TZ15 / SSAAA/TNU/TF/STF / 0014, TZ15 / SSAAA/TNU/TF/STF / 0400, TZ15 / SSAAA/TNU/TF/STF / 0070
Maximum flow: 232GPM(878.1Lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 21 '(6.35 m)
Maximum particle size available: 3/8"(9.5mm)
Diaphragm material: butadiene rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
>>
