High Speed High Precision Fanuc System 3/4/5axis CNC Milling Machine Tool

Product Description

Hot selling High Speed High Precision 3/4/5Axis CNC Milling Machine
Product Description
TZ-V855 Line rail vertical machining center is a new generation of CNC machine tools based on advanced design concepts such as ergonomics, precision manufacturing technology and automation technology, through repeated simulation calculation of engineering mechanics and prototype identification and trial production. This kind of machine tool is widely used in medical, UAV, new energy auto parts, precision fixture and automation equipment parts and other industries, mass production of precision parts.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

Detailed Photos
• Size & Accuracy:
Diameter: the diameter is 63mm and the tolerance is -0.05 to 0.
Accuracy: Due to its smaller size, BT40 shanks typically offer higher accuracy and stability for precision machining
• RPM:
RPM: Spindles are usually capable of higher RPMs and are suitable for high speed cutting. The specific speed range can vary according to different brands and models of BT40 spindles, but they are usually able to reach 8000~12000rpm.
• Lubrication and Cooling:
Oil mist lubrication technology is adopted to ensure that the bearings can be fully lubricated when rotating at high speed. At the same time, the spindle is cooled by internal circulating waterways to ensure temperature control of the spindle at high speed.

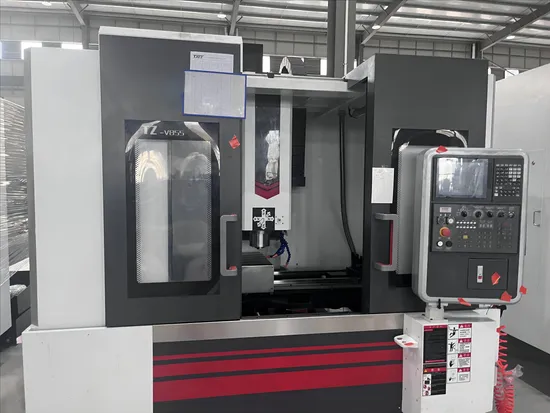

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Excellent processing conditions and good production environment Imported horizontal machining center, vertical machining center, CNC boring machine (rotating table) and gantry guideway grinding machine, effectively ensure the accuracy of the workpiece, greatly improve the assembly accuracy, and the durability of the accuracy.
Advanced detection methods Positioning accuracy test and best correction with laser, using strict German VDI3411 inspection specification (5 times each)
Each machine tool must go through a strict processing side test before leaving the factory to ensure that it can accept the test of actual processing and meet the corresponding processing accuracy requirements.

Product sample
• CNC machine center integrates the function of milling, drilling and tapping • CNC Machining for various size of the metal profile, such as aluminum, steel, copper and non-metal materials • CNC Vertical Machine tools is widely used in industries of 3C electronics, rail transportation, aerospace, liner module guide rail and etc.
Packaging & Shipping
•Highly protective
•Structural stability
•Environmentally friendly and recyclable
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

---
