Flame-Proof Three-Phase Asynchronous Electrical Motor Industrial Explosion-Proof, Gas Explosion-Proof Special Purposeb35

Product Description

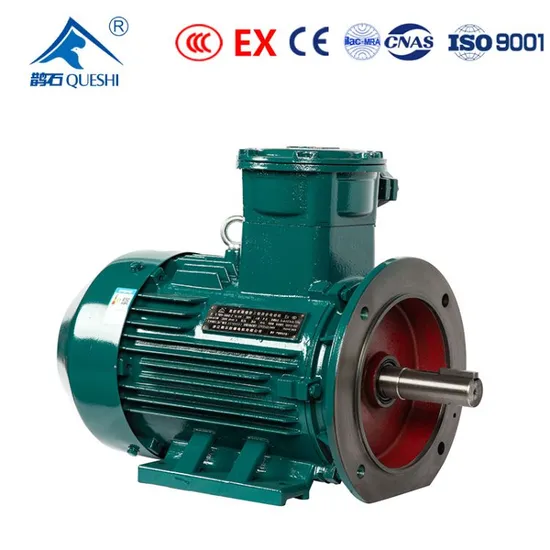

YBX4 High Efficiency FlameproofThree Phase Asynchronous Motor
PRODUCT OVERVIEW
YBX4 series ultra-high efficiency flameproof three-phase induction motors are totally enclosed ultra-high efficiency flame-proof three-phase induction motors produced by our company. The efficiency index shall be in accordance with the energy saving value of secondary motor stipulated in GB/T18613 -2020 minimum energy efficiency value and energy efficiency grade of motor. This series motor conforms to international standard GB/T 3836.1"Explosive Environment Part 1: qualification requirements" and GB/ T 3836.2"Explosive Environment Part 2: protective equipment of flameproof enclosure""D" this series motor adopts flameproof type, suitable for electrical drive of mechanical equipment in explosive gas environment. Ex db I Mb, Ex db IA T 1-4/Gb,Ex db IIB T 1-4 /GB Ex db IC T 1-4 Gb,The temperature group is T 1, T 2, T 3, T 4 explosive gas mixture environment.
Product qualification certification
Such as product qualification requirements before placing an order to consult customer service
Zhejiang Queshi Explosion Proof Motor Co., Ltd. Factory shoot

Model	RatedOutput	Speed	Input Current	Rated current IN	Efficiency	PowerFactor	Rated Tower(Tn)	TST/TFL	IST/TFL	TM/TFL	Noise
YBX4-80M1-2	0.75	2875	380	1.62	83.5	0.83	2.5	2.2	8.5	2.3	62
YBX4-80M2-2	1.1	2885	380	2.32	85.2	0.83	3.65	2.2	8.5	2.3	62
YBX4-90S-2	1.5	2890	380	3.06	86.5	0.85	4.97	2.2	9.0	2.3	67
YBX4-90L-2	2.2	2895	380	4.36	88	0.86	7.32	2.2	9.0	2.3	67
YBX4-100L-2	3	2900	380	5.84	89.1	0.87	9.88	2.2	9.5	2.3	74
YBX4-112M-2	4	2915	380	7.64	90	0.88	13.2	2.2	9.5	2.3	77
YBX4-132S1-2	5.5	2925	380	10.3	90.9	0.88	18	2.0	9.5	2.3	79
YBX4-132S2-2	7.5	2925	380	13.9	91.7	0.89	24.7	2.0	9.5	2.3	79
YBX4-160M1-2	11	2940	380	20.2	92.6	0.89	35.7	2.0	9.5	2.3	81
YBX4-160M2-2	15	2940	380	27.4	93.3	0.89	48.9	2.0	9.5	2.3	81
YBX4-160l-2	18.5	2940	380	33.6	93.7	0.89	60.3	2.0	9.5	2.3	81
YBX4-180M-2	22	2945	380	39.8	94.0	0.89	71.3	2.0	9.5	2.3	83
YBX4-200L1-2	30	2970	380	54.2	94.5	0.89	96.5	2.0	9.0	2.3	84
YBX4-200L2-2	37	2970	380	66.6	94.8	0.89	119	2.0	9.0	2.3	84
YBX4-225M-2	45	2970	380	80.8	95.0	0.89	145	2.0	9.0	2.3	86
YBX4-250M-2	55	2970	380	98.5	95.3	0.89	177	2.0	9.0	2.3	89
YBX4-280S-2	75	2980	380	134	95.6	0.89	241	1.8	8.5	2.3	91
YBX4-280M-2	90	2980	380	160	95.8	0.89	289	1.8	8.5	2.3	91
YBX4-315S-2	110	2985	380	196	96.0	0.89	353	1.8	8.5	2.3	92
YBX4-315M-2	132	2985	380	235	96.2	0.89	423	1.8	8.5	2.3	92
YBX4-315L1-2	160	2985	380	284	96.3	0.89	513	1.8	8.5	2.2	92
YBX4-315L2-2	185	2985	380	328	96.5	0.89	593	1.8	8.5	2.2	92
YBX4-315L3-2	200	2985	380	355	96.5	0.89	641	1.8	8.5	2.2	92
YBX4-355M1-2	220	2990	380	381	96.5	0.91	705	1.6	8.5	2.2	100
YBX4-355M2-2	250	2990	380	433	96.5	0.91	801	1.6	8.5	2.2	100
YBX4-355L1-2	280	2990	380	484	96.5	0.91	897	1.6	8.5	2.2	100
YBX4-355L2-2	315	2990	380	545	96.5	0.91	1009	1.6	8.5	2.2	100
YBX4-3551-2	355	2990	380	613	96.5	0.91	1138	0.9	8.6	1.8	104
YBX4-3552-2	375	2990	380	655	96.5	0.91	1202	0.9	8.6	1.8	104

---
