Machine a Block a Ciment

Product Description

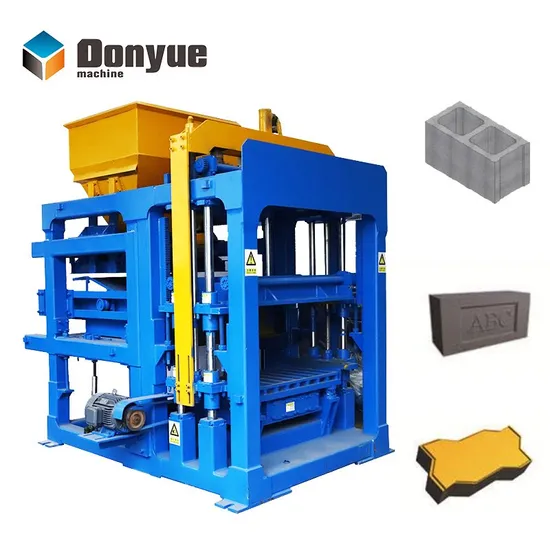

QT4-15 machine a block a ciment
1). QT4-15 automatic hydraulic lego block machine line rack: Using high-strength steel and special welding process, it is extremely strong.
2). QT4-15 automatic hydraulic lego block machine line column-oriented: The use of super-special steel, chrome-plated surface, it has a good resistance and wear resistance.
3). Mold cavity & the pressure head: Electro-hydraulic synchronous drived, the high degree of the same manufactured pallets are rarely error, the product has been good of consistency.
4). QT4-15 automatic hydraulic lego block machine line use of proportion of the sensing and hydraulic drive technology, under the function of the swing-style fabric cars and arch-breaking bodies, resulting in forced and centrifugal blowdown, all of these made rapid and uniform fabrics, and were beneficial to the thin-walled and multi-holes' is products.
5). QT4-15 automatic hydraulic lego block machine line vibrators, the use of electro-hydraulic technology-driven, multi-source vibration system, the hydraulic drive generated the vertical synchronous vibration under the computer's control. Amplitude frequency could be adjusted, and the achievement of low-frequency feeding and high-frequency shaping of the working principle made a good vibration effect of different raw materials, vibration speeds could be up to 17.5 G.
6). Computer-controlled and human-machine interface, the control apparatus using imported with original packing, the control program combining 20 years of actual production experience, combining with the trend of international development researched and designed, designing to meet the national conditions, strong memory could prepare for upgrading needs.

Dimension of host machine	2700×1600×2500mm	Host machine power	24KW
Moulding area	830×400mm	Vibration force	50KN
Moulding period	15-20S	Capacity	93.55KVA
The size of the pallet	880×580×22mm	Mixer model	JS500
Weight of the host machine	4.5T	General water Consumption	4T/every day

3. machine a block a ciment production capacity

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200	8	1440-1920	11520-15360
400X150X200	6	1080-1440	8640-11520
400X200X200	4	720-960	5760-7680
Paver:200X100X60	16	2880	23040
Paver:200X163X60	12	1800	14400

---
