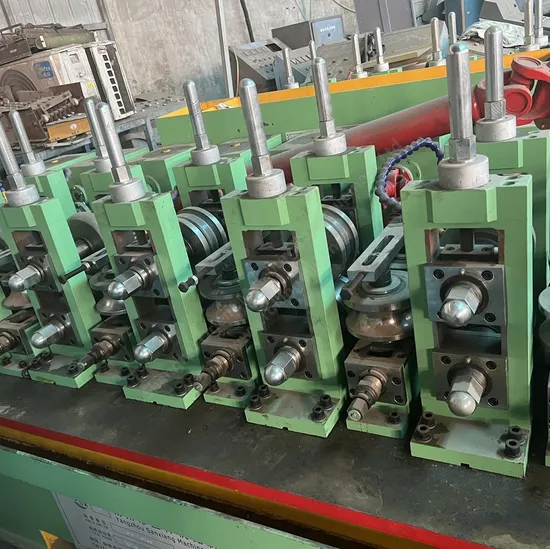

Powerful Refurbished Used Tube Mill Production Line for Efficient Operations

Product Description

High Frequency Welding Tube Mill Line:
Main Process
Uncoiler→ beading & pressure-guiding/straight head leveling/leveler→ shear-butt welding→ horizontal spiral loop→ forming unit→ solid high frequency power supply→ outer-burr removal device→ bead polishing device→ cooling channel→ sizing mill group→ straightening→ computer flying saw→ pneumatic turning rack

Product specification:

Type	Welded pipe Dia (mm)	Pipe wall thickness (mm)	Welding speed (m/min)	Main motor power(KW)	Solid high frequency power supply (kW)
VZH-16	φ7-18mm	0.3-1.0mm	30-120m/min	22kW	60kW
VZH-20	φ9-26mm	0.3-1.2mm	30-120m/min	37kW	60kW
VZH-25	φ10-30mm	0.4-1.5mm	30-100m/min	45kW	100kW
VZH-32	φ12.7-38.1mm	0.5-1.75mm	30-100m/min	75kW	100kW
VZH-32z	φ12.7-38.1mm	0.6-2.0mm	20-90m/min	45kW*2	100kW
VZH-45	φ16-50.8mm	0.6-1.5mm	20-80m/min	45kW*2(90kW)	150kW
VZH-45z	φ16-50.8mm	0.7-2.5mm	20-75m/min	55kW*2(132kw)	150kW
VZH-50	φ20-63.5mm	0.7-3.0mm	20-75m/min	75kW*2	200kW
VZH-60	φ25-76mm	0.8-3.25mm	20-70m/min	90kW*2	250kW
VZH-76	φ30-101mm	1.0-3.75mm	20-70m/min	110kW"2	300kW
VZH-89	φ35-114mm	1.2-4.25mm	20-70m/min	132kW*2	300kW
VZH-114	φ40- 127mm	1.5 - 5.0 mm	15-60m/min	160kW*2	400kW
VZH-125	φ50-130mm	1.8-5.5mm	10-50m/min	185kW*2	400kW
VZH-165	φ60-165mm	2.0-6.0mm	10-50m/min	200kW*2	400kW
VZH-165z	φ76-168mm	2.5-8.0mm	10-50m/min	200kW+110kW*2	500kW
VZH-219Q	φ76-219mm	2.0-6.0mm	10-40m/min	90kW*2+110kW*2	500kW
VZH-219	φ89-219mm	3.0-8.0mm	10-40m/min	110kW*2+132kW*2	600kW
VZH-219z	φ89-219mm	4.0-10.0mm	10-40m/min	132kW*2+160kw*2	700kw
VZH-273	φ100-273mm	4.0-10.0mm	10-40m/min	160kW*2+185kW*2	700kW
VZH-273z	φ114-273mm	4.5-12.0mm	10-30m/min	185kW*2+200kW*2	800kW

---
