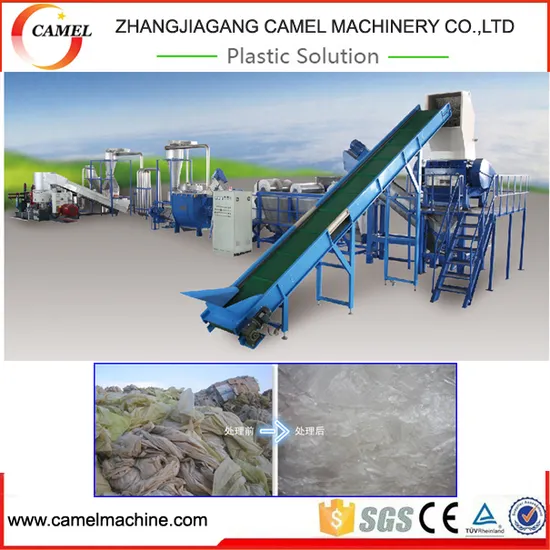

Waste Plastic Recycling PE/PP Films/Bags Crushing and Washing Line

Product Description

Plastic film & bag recycling and washing line :
Belt conveyor*2→Crusher (with water) *2→ Double screw conveyor*2→Film floating washer→ Screw conveyor→ High speed friction machine→ Screw conveyor→ Horizontal dewatering machine→ Drying system→ Transition silo→ Drying system→ Storage hopper→ Control cabinet

Advantages:
1. Final products has good quality. When process PP PE film bags, Water content<=8%
2. The whole line capacity between 200kg/h-2000kg/h (200kg/h, 300kg/h, 500kg/h, 1000kg/h)
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service lift time
4. World famous brand components applied on the production line- SKF bearing, Siemens contactor, RKC temperature, ABB inverter, Siemens PLC control etc
5. The whole production line with CE certification, ISO9001 certification

Technical parameter:

Plastic PP PE film/bag recycling washing line main components(1000kg):
Name	Quantity	Power
Belt conveyor	2sets	2.2kw*2
Crusher	2sets	55kw*2
Screw conveyor	2sets	3kw*2
Floating washer	1set	3kw+3kw+3kw
Screw conveyor	1set	5.5kw
High speed frication machine	1set	45kw
Screw conveyor	1set	5.5kw
Horizontal dewatering machine	1set	110kw +1.5kw
Drying system-1	1set	48kw+11kw
Transition storage hopper	1set	/
Drying system-2	1set	36kw+11kw
Storage hopper	1set	1.5kw+1.5kw
Control cabinet	1set	/
