| US$100.00-1,500.00 | 1 Piece (MOQ) |

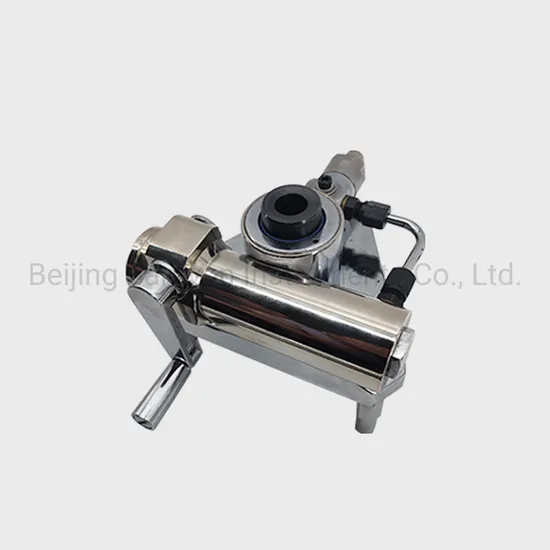

| Application: 40 multi-functional strength tester is suitable for testing the concrete(C10~C80) strength and External wall tapestry brick bonding strength on site, and also suitable for testing the other pull strength. It adopts the Post-install pull-out test method for testing the concrete strength through testing the anchoring parts pull-out strength to calculate the concrete strength. Tapestry brick bonding strength is tested through three-point force of reaction to tapestry brick. Standard: CE CS69:94 Technical specification for inspection of concrete strength by Pull-out post-Insert method JGJ110-97 Testing standard for adhesive strength of tapestry brick of construction engineering JGJ126-2000 Specification for construction and acceptance of tapestry brick work for exterior wall Parameter: Display Mode: Force value(KN), Strength(MPa) adjustable Hydrocylinder stroke: 10mm Testing range: 0 ~ 40.000kN / 0 ~ 30.000MPa Resolution: 0.001kN / 0.001MPa Accuracy: 2% Peak holding: yes Data storage: 500 Power: High power capacity Li battery |
