1.3m Garlic Shallot Potato Harvester with Auto Picking System

Product Description

1.3m garlic shallot potato harvester with auto picking system
Advantages:
1.This series potato harvester not only used for potato and also for sweet potato, garlic, onion and other root crops.
2.4U Series Potato Harvester has the merits of high efficiency, lower breakage, running fast without trembling,
and no blocking by the grasses
3.With ISO certificate and international technology.
4.2 years guarantee.
Description:

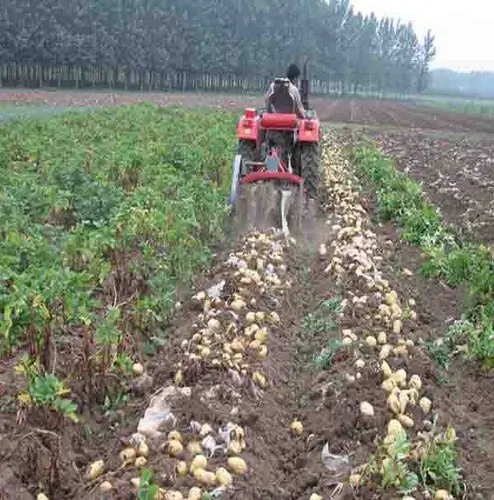

4U series potato harvester is 3 pointed mounted with the tractor, dirve by rear pto shaft. This tractor potato harvester is intended for potato excavation , tubers partial separation from the soil and tubers laying on field surface for their further picking up. A triangular beater is set on the potato harvester.
The working principle of this potato harvester is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate though vibration sieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back.
Machine detail:
1.This potato harvester machine for 25-80hp 4 wheel tractor.
2.Dig the potatoes safely without cutting single potato or damaging potato skin.
3.Not to affect the next crop's growth.
4.Driven by PTO in rotating speed 540 r/min.
Main Specifications:

Type	4UD-1	4U-1	4U-2
Overall dimensions (L×W×H) (cm)	240×90×100	240×100×100	280×220×100
Weight(kg)	180	220	600
Rows	1	1	2
Space of rows	55-80
Productivity(ha/h)	0.2-0.33	0.2-1.33	0.33-0.54
Working depth (cm)	20-35
Working width (mm)	600	850	1650
Netrate of harvesting	97%
PTO speed (RPM)	540/760
Linkage	three-point mounted
Matched Tractor Power(hp)	12-35	15-35	50-80

FAQ:
1.After-sales: usually, this kind of machine seldom occurs problems. But, if there is any defeacts, just contact with us, we will try our best to solve your problems and give a hand for solving your problems.
2. Free parts: free spare parts is available for our customers. If you have other special requirements for the parts of machine, we can provide you that.
3. Terms of payment: TT, Western Union, L/C or other ways of payment.
4. Delivery: 5-8days after receiving payment.
5. Warrantee itme: 24 months.
6. Shipping: by sea, by road or other ways which customer prefer.
Welcome to contact us!

---
