Variable Frequency Explosion-Proof Three-Phase Asynchronous Electrical Motor Variable Frequency Adjustable Speed AC Motor

Product Description

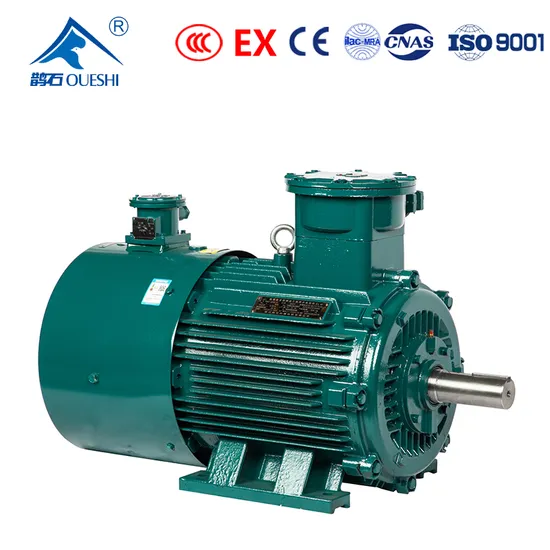

YBX4 High Efficiency FlameproofThree Phase Asynchronous Motor
PRODUCT OVERVIEW
YBBP series explosion-proof frequency conversion speed regulation special three-phase asynchronous motors this series of motors are frequency conversion speed regulation special three-phase asynchronous motors and electronic frequency converter joint use, can achieve speed 150 ~ 2750 RPM (4 pole) range of stepless speed regulation, is those who have a wide range of stepless speed requirements of the mechanical equipment of the ideal power. Widely used in transportation, metallurgy, textile, printing and dyeing, chemical, mining, fans, pumps and other industries. Its electrical performance and installation size are manufactured according to the national standard JB/T7118, and in line with international IEC standard.

Product qualification certification
Such as product qualification requirements before placing an order to consult customer service
Zhejiang Queshi Explosion Proof Motor Co., Ltd. Factory shoot

Model	RatedOutput	Speed	Input Current	Rated current IN	Efficiency	PowerFactor	Rated Tower(Tn)	TST/TFL	IST/TFL	TM/TFL	Noise
YBX4-80M1-2	0.75	2875	380	1.62	83.5	0.83	2.5	2.2	8.5	2.3	62
YBX4-80M2-2	1.1	2885	380	2.32	85.2	0.83	3.65	2.2	8.5	2.3	62
YBX4-90S-2	1.5	2890	380	3.06	86.5	0.85	4.97	2.2	9.0	2.3	67
YBX4-90L-2	2.2	2895	380	4.36	88	0.86	7.32	2.2	9.0	2.3	67
YBX4-100L-2	3	2900	380	5.84	89.1	0.87	9.88	2.2	9.5	2.3	74
YBX4-112M-2	4	2915	380	7.64	90	0.88	13.2	2.2	9.5	2.3	77
YBX4-132S1-2	5.5	2925	380	10.3	90.9	0.88	18	2.0	9.5	2.3	79
YBX4-132S2-2	7.5	2925	380	13.9	91.7	0.89	24.7	2.0	9.5	2.3	79
YBX4-160M1-2	11	2940	380	20.2	92.6	0.89	35.7	2.0	9.5	2.3	81
YBX4-160M2-2	15	2940	380	27.4	93.3	0.89	48.9	2.0	9.5	2.3	81
YBX4-160l-2	18.5	2940	380	33.6	93.7	0.89	60.3	2.0	9.5	2.3	81
YBX4-180M-2	22	2945	380	39.8	94.0	0.89	71.3	2.0	9.5	2.3	83
YBX4-200L1-2	30	2970	380	54.2	94.5	0.89	96.5	2.0	9.0	2.3	84
YBX4-200L2-2	37	2970	380	66.6	94.8	0.89	119	2.0	9.0	2.3	84
YBX4-225M-2	45	2970	380	80.8	95.0	0.89	145	2.0	9.0	2.3	86
YBX4-250M-2	55	2970	380	98.5	95.3	0.89	177	2.0	9.0	2.3	89
YBX4-280S-2	75	2980	380	134	95.6	0.89	241	1.8	8.5	2.3	91
YBX4-280M-2	90	2980	380	160	95.8	0.89	289	1.8	8.5	2.3	91
YBX4-315S-2	110	2985	380	196	96.0	0.89	353	1.8	8.5	2.3	92
YBX4-315M-2	132	2985	380	235	96.2	0.89	423	1.8	8.5	2.3	92
YBX4-315L1-2	160	2985	380	284	96.3	0.89	513	1.8	8.5	2.2	92
YBX4-315L2-2	185	2985	380	328	96.5	0.89	593	1.8	8.5	2.2	92
YBX4-315L3-2	200	2985	380	355	96.5	0.89	641	1.8	8.5	2.2	92
YBX4-355M1-2	220	2990	380	381	96.5	0.91	705	1.6	8.5	2.2	100
YBX4-355M2-2	250	2990	380	433	96.5	0.91	801	1.6	8.5	2.2	100
YBX4-355L1-2	280	2990	380	484	96.5	0.91	897	1.6	8.5	2.2	100
YBX4-355L2-2	315	2990	380	545	96.5	0.91	1009	1.6	8.5	2.2	100
YBX4-3551-2	355	2990	380	613	96.5	0.91	1138	0.9	8.6	1.8	104
YBX4-3552-2	375	2990	380	655	96.5	0.91	1202	0.9	8.6	1.8	104

---
