Flexible Solid Stranded Copper Aluminium Conductor PVC Insulated Hook up Building Electric Wire for House Wiring

Product Description

Product Description
Flexible Solid Stranded Copper Aluminium PVC Insulated Electric Wire Cable
1.Application: Fixed wiring,civil power,mobile equipment
2.Construction
Conductor type: IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5~400mm2
We can according to our client's need and also provide technical data
3.Characteristic
Rated Voltage: 450/750V More-than 1.5mm2 single core conductor 300/500V Less-than 1.5mm2 single core and multicore conductor 300/300VLess-than 1.5mm2 multicore conductor
Test Voltage: AC 1500V/5Min for 0.5~1mm2 multicore conductor AC 2000V/5Min for 0.5~1mm2 single core and multicore conductor AC 2500V/5Min Other.
Color of Insulation: Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green.
Notes 1, Ambient temperature for insulation shall not be lower than 0ºC. 2, At nominal conditions, the conductor's operating temperature is -15ºC to +70ºC 3, Fire resistant wire conform to IEC 60331-2009, Flame resistant wire conform to IEC 60332-2004.
4.Standard IEC 60227-2007 or as per customer's request
Some Type (Remarks: we can design and produce according to customer's request.)

Type	Name	Laying Site and Requirements	Long-time Permissible Working Temperature of Conductor(ºC)
227IEC01/05 BV BLV	Copper Conductor,PVC Insulated Wire	Fixed laid in the circumstance of indoor, conduit etc.	70
	Aluminium Conductor,PVC Insulated Wire
227IEC 07 BV-90	Heat Resistant Copper Conductor,PVC Insulated Wire at 90ºC	Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc.	90
BVR	Copper Conductor,PVC Insulated Flexible Wire	Fixed laid where flexibility is required.	70
227-IEC10 BVV	Copper Conductor PVC Insulated and PVC Sheathed Round Wire	Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground.	70
BLVV	Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire
BVVB	Copper Conductor PVC Insulated and PVC Sheathed Flat Wire
BLVVB	Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire
227IEC 02 RV227 IEC 06 RV	Copper Conductor,PVC Insulated Flexible Connector	Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required.	70
227IEC 42 RVB	Copper Conductor,PVC Insulated Flat Flexible Connector
RVS	Copper Conductor,PVC Insulated Flexible Twisting Connector
227IEC52 RVV 227IEC53 RVV	Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type)

Detailed Photos

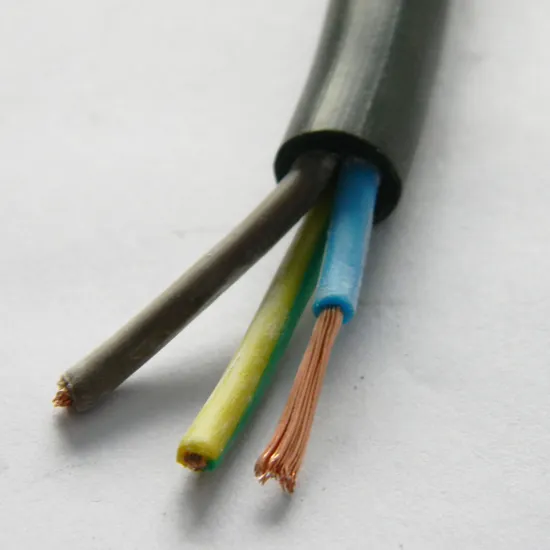

5. Picture
Company Profile
6.Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Certifications
7.Our certificate
FAQ
8.FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
