High Automation Prestressed Pipe Making Machine

Product Description

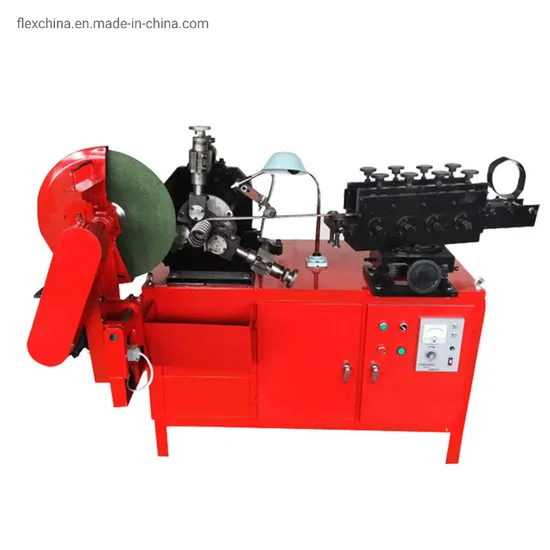

Spiral Bellows Pipe Equipment Prestressed Bellows Pipe Making Machine
Product Description
This machine is a kind of equipment for producing prestressed concrete reserved tunnel metal bellows makes the galvanized steel strip coil into double wave shape then undercuts and swages to apply the bellows, Which With high efficiency and Small volume, Easy operation and maintenance, convenient and speed adjustable. It is suitable for centralized use at construction sites and factories.
Process:
Raw material (steel trip)---purge tank---Conduction frame---contoured roll---Winding head---undercut---pipe formation---cutting

Prestressed corrugated pipe is mainly divided into metal corrugated pipe and plastic corrugated pipe.
Thickness of the steel trip:0.2mm-0.35mm
Internal Diameter φ 35~58mm φ60~85mm φ90~115mm φ120~155mm φ160~205mm φ210~305mm

Product Parameters

Main motor power	4KW
Cutting machine power	2.2KW
Pump power	40w
water tank capacity	23 liters
radial stiffness	less than or equal to 0.2
Tensile load	Greater than or equal to 4500
Steel strip specification	0.23-0.4*36±0.5
Bellows Pitch	26.5-28.5
Tube inner diameter	Diameter 35-135 (standard) Diameter 140-305 (special)
total mass	450KG
Dimensions	1500*800*1360mm

Finished Product
Prestressed metal bellows shall meet the following requirements:
1. Has a certain strength that is sufficient to maintain its shape and resist damage, penetration or deformation during construction;
2. It is flexible enough to meet the needs of laying special forms of prestressed tendons;
3. It has a certain anti-wear property to prevent the prestressed tendons from being destroyed by the formation of holes when the channels are cabled and stretched.
4. The cross-sectional area of the bellows should be at least 2~2.5 times that of the prestressed tendons.
5. With a certain degree of sealing, it is necessary to ensure the sealing connection between the bellows and the anchor, and between the bellows and the bellows;
6. Has a certain adhesive ability
Prestressed metal corrugated pipes have been widely used in developed countries such as Britain, France, the United States, and Japan in modern buildings. The joints of the steel pipes are of a tight embossing type, which is firm and does not trip. After the on-site pouring, the contact with the concrete is extremely strong, and it forms a complete one with the concrete, which enhances the seismic performance of the structure. It has excellent functions. Compared with the general solid plate, it has light weight, large span, small deflection, no column cap, good safety, and low comprehensive cost, thus improving the building clearance, increasing the use and sales area, which is in line with the existing domestic Compared with ordinary beam-slab structure, solid beam-free slab, and unbonded prestressed concrete floor slab, it saves 5%-7% of steel, 10%-30% of concrete, vertical water, electricity, air conditioning, elevator, interior and exterior The cost of wall decoration is 5%-15%, and it has the functions of sound insulation and heat insulation, which brings considerable economic benefits to the owner.
Packaging & Shipping
Company Profile
We are professional manufacturer of flexible metal hoses/bellow,exhaust pipe production line machinery for over 25 years. Our machines have been exported to many countries, such as Russia, Ukraine, Canada, USA, UK, Poland, Australia, Malaysia,Singapore, Argentina, Brazil,India etc...
Customers
FAQ
Q: What's your supply capacity?
A: Generally, our factory's capacity is 100 sets per month. But for special large quantity order, we can produce more than it. Don't worry about this.
Q: How can we trust your quality?
A: There are many ways to check quality. Such as, send sample, visit factory, etc. Our advice is that visit factory is the best way to check quality.
Q: What are your payment terms?
A: We accept both T/T payment and irrevocable L/C at sight. For the T/T payment, we accept 30% prepayment in advance and the balance payable against copy of B/L.
Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan.
Q: Do you inspect the finished products?
A: Yes. Each step of products will be carried out inspection by the QC department until shipping
What information do you want to know if I want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you need.
d). Raw material.

---
