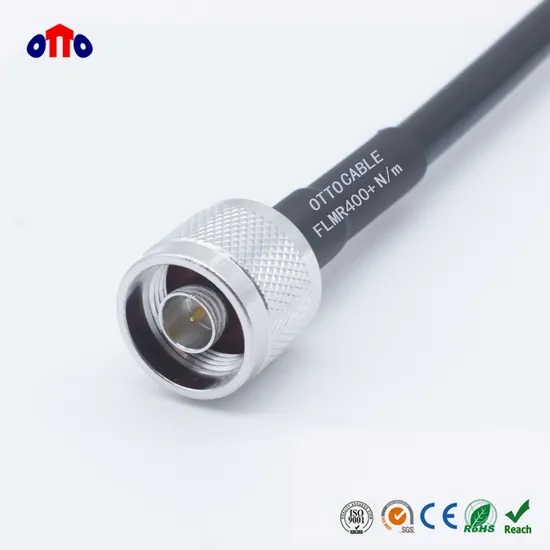

50 Ohm RF Coaxial Cable LMR400 with N/ TNC / SMA Plug for Antenna

Product Description

RF Coaxial Cable LMR400
Application:
• Wireless Communications Systems
• DAS
• Mobile Antennas
• Cellphone Signal Repeaters
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Replacement for RG8, 7D-FB, 8D-FB.
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction

Item	Material	Diameter(mm)
Inner Conductor Dielectric First Shield Second Shield Jacket	Copper Clad Aluminum Foam PE Bonded Aluminum Foil Tinned Copper Wire Braid PVC	2.74 7.24 7.39 N/A 10.30

Electrical Characteristics

Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) Voltage With Stand Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm)

50±3 78.4 85.0 ≥18 ≥90 2000.0 -20 to +85 -20 to +85 Min. 200

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 450 900 1500 1800 2000 2500	5.6 9.7 13.8 18.0 20.1 21.6 24.5

---
