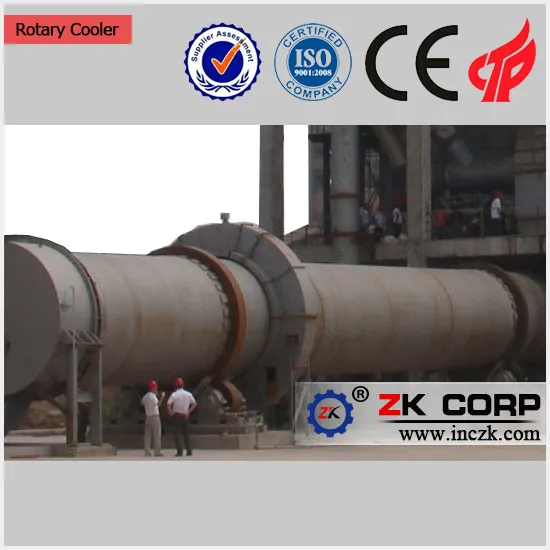

China NPK Compound Fertilizer Cooler

Product Description

NPK compound fertilizer cooler Introduction:
Rotary cooler/NPK compound fertilizer cooler is used for cooling the compound fertilizers.It can directly cool the granules of compound fertilizers quickly from 65-85 degrees to close to room temperature,to facilitate the timely packaging,to prevent caking on storage process.
The advantages of Rotary Cooler:
1). Rotay cooler can be heated direct or indirect; The heating efficiency can be up to 95%
2). Rotary cooler operating under high temperature and low oxygen to avoid materials being self burning or exploding when drying. Big drying capacity, highly industrialization and low cost
3). Low amount of air required to save tail gas handling cost
Rotary Cooler is a kind of quench cooler. Its principle is to quench clinker which is laid in levels on the grate plates with cold wind from air blower. Temperature of clinker will be rapidly dropped from 1200° C to be less than 100° C. Plenty of waste gases after cooling could not only be used as secondary air in the kiln, but also be heat source for drying coal in the coal mill.
Working principle:
Rotary Cooler (lime cooler, cement cooler, magnesium cooler) work principle: Cooler is widely used in building material, chemical industry, metallurgy, and other industry, matching with rotary kiln. The equipment in the natural state, low speed revolving in a slope of 3.5%, the material feeding from the top of cylinder, scatter plate is scatting the material to make it discharging from the bottom side of cooler.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com/calcining.html
Rotary Kiln:http://hnzkjq.en.made-in-china.com/calcining.html
Preheater: http://hnzkjq.en.made-in-china.com/calcining/8.html
Cement Mill: http://hnzkjq.en.made-in-china.com/grinding/17.html
Rotary Dryer: http://hnzkjq.en.made-in-china.com/calcining/116.html
Raw Mill: http://hnzkjq.en.made-in-china.com/grinding/16.html
Trommel Screen:http://hnzkjq.en.made-in-china.com/separating/137.html
Rotary cooler:http://hnzkjq.en.made-in-china.com/calcining/6.html

Specification (m)	canister			electricmotor		Reducer model	size (mm)	weight (t)
	volume (m 3 )	rev (r/min)	pitch (%)	model	Power (kw)
Φ 1× 15	11.8	5	5	YCT200-4B	7.5	ZQ400	15000× 1876× 2069	9.5
Φ 1.2× 12	13.57	5	5	YCT225-4A	11	ZQ500	12000× 2159× 2475	10.3
Φ 1.2× 15	17	4-5	5	YCT225-4B	15	ZQ500	15000× 2294× 2475	12.8
Φ 1.2× 20	22.6	4-5	5	YCT225-4B	15	ZQ500	20000× 2294× 2475	16.8
Φ 1.5× 10	17.67	3-5	5	YCT225-4B	15	ZQ650	10000× 2655× 2895	16.5
Φ 1.5× 14	24.9	3-5	5	YCT225-4B	15	ZQ650	14000× 2655× 2895	19.2
Φ 1.5× 18	31.8	3-5	5	YCT250-4A	18.5	ZQ650	18000× 2655× 2895	22.9
Φ 1.5× 20	35.3	3-5	5	YCT250-4A	18.5	ZQ650	20000× 2655× 2895	25.4
Φ 1.8× 16	30.5	3-5	4	YCT250-4B	22	ZQ750	16000× 3060× 2980	35.4
Φ 1.8× 18	45.8	3-5	4	YCT250-4B	22	ZQ750	18000× 3060× 2980	32.3
Φ 1.8× 20	50.9	3-5	4	YCT250-4B	22	ZQ750	20000× 3060× 2980	39.2
Φ 2.0× 16	50.3	3-5	3.5	YCT250-4B	22	ZQ750	16000× 3340× 3420	38.6
Φ 2.0× 20	62.8	3-5	3.5	YCT280-4A	30	ZQ750	20000× 3340× 3420	42.8
Φ 2.2× 14	53.2	3-5	3.5	YCT280-4A	30	ZQ750	14000× 3620× 3570	45.3
Φ 2.2× 18	68.4	3-5	3.5	YCT280-4A	30	ZQ750	18000× 3620× 3570	49.4
Φ 2.2× 20	76	3-5	3.5	YCT280-4A	30	ZQ750	20000× 3620× 3570	51.8
Φ 2.4× 16	72.3	3-4	3.5	YCT280-4A	30	ZQ850	16000× 3860× 3760	58.8
Φ 2.4× 20	90.4	3-4	3.5	YCT280-4A	30	ZQ850	20000× 3860× 3760	63.9
Φ 2.8× 28	172.	2.5	3.5	Y280M-6	55	ZQ1000	28000× 4350× 4200	130
Φ 3× 30	212	1-2	3.5	Y315S-6	75	ZL115	30000× 4860× 4630	169

Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.

Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.

Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory?level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.

---
