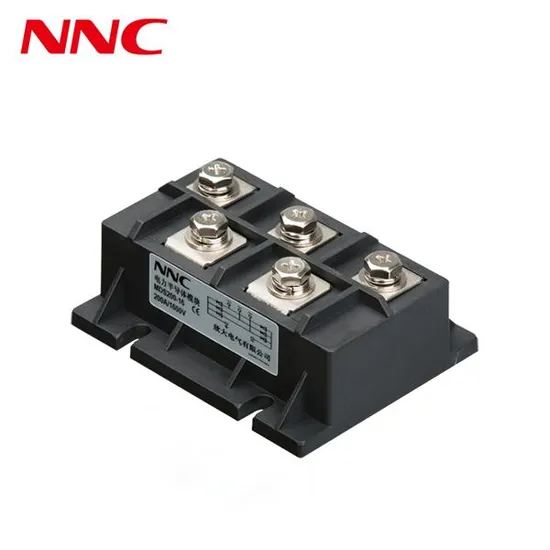

electronic component Bridge Rectifier Module MDS400-16 Sanrex Type Module

Product Description

Features and Applications Welding technique under the protection of vacuum and hydrogen, the insulation voltage between the chip and the baseplate is 2500VAC. Fully pressure welding structure, good temperature characteristics and power cycling ability. International standard capsulation, small&light, easy in installation and convenient in use and maintenance. Max. Junction temperature up to 150ºC, high surge current and low forward voltage drop. Air-cooling If≤350A, air-cooling or water-cooling If≥400A. Applications for Converter, Motor control, Soft start, Rectifying power source, Welding machine, Battery charge and discharge, etc Specifacation

Type	IF(AV)	VDRM	VTM/ITM		IRRM	IF(RMS)	TjmºC	Viso	Outline
	A	V	V	A	mA	mA		V(AC)
MDS30	30	10	100	600-2000	8	1.45	30	150	2500	MQ25,MQ27
MDS60	60	20	100	600-2000	8	1.45	60	150	2500	MQ27
MDS100	100	35	100	600-2000	10	1.45	100	150	2500	MQ19,MQ20,MQ29
MDS150	150	50	100	600-2000	10	1.5	150	150	2500	MQ21,MQ28
MDS200	200	68	100	600-2000	10	1.5	200	150	2500	MQ21,MQ28
MDS300	300	100	100	600-2000	10	1.5	300	150	2500	MQ23
MDS400	400	135	100	600-2000	10	1.5	400	150	2500	MQ23
MDS500	500	168	100	600-2000	10	1.5	500	150	2500	MQ24
MDS600	600	200	100	600-2000	10	1.5	600	150	2500	MQ24
MDS800	800	270	100	600-2000	10	1.5	800	150	2500	MQ24
MDS1000	1000	330	100	600-2000	10	1.5	1000	150	2500	MQ24
Note:
1. * means water-cooling module.				2. The parameters is the chips rated value.

Wiring Diagram 400A Sanrex Tpye

---
