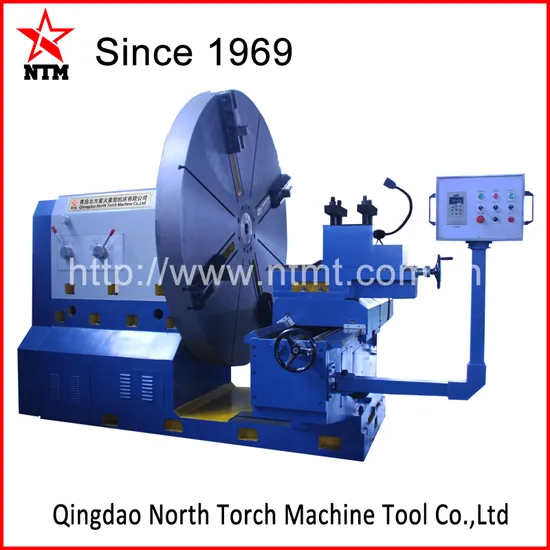

Professional HDPE Flange Turning Lathe with 50 Years Experience (CW6020)

Product Description

China First Professional Flange Lathe
For Turning HDPE Flanges,Tube Plate,Tire Mold,Wheel Hub Turbine,Flange,Oil Pan,Shaft,etc

More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Separate Handwheel Operation---convenient to tightly adjust the machining between cutting tool carriage and work-piece
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.

Name		CW6010	CW6012	CW6016	CW6020	CW6025	CW6025	CW6030	CW6036
Item	Unit
Max. Swing Diameter	mm	1000	1200	1600	2000	2500	2500	3000	3600
Max. Weight of work-piece	T	1	1	2	2	3	3	5	5
Max. Length of work-piece	mm	500	500	500	500	500	500	500	500
Range of Spindle Speed	r/min	16-128	16-128	16-128	12-94	12-94	12-94	4-40	4-40
Chuck Diameter	mm	800	1000	1400	1600	2000	2000	2500	3000
Horizontal Stroke	mm	500	600	800	1000	1250	1250	1500	1800
Longitudinal Stroke	mm	500	500	500	500	500	500	500	500
Main Motor Power	Kw	7.5	7.5	11	15	15	15	22	30

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!

---
