Independent Smoke Detector for Home Fire Alarm Security System

Product Description

Stand Alone Photoelectric Smoke Detector Fire Alarm High Sensitivity Easy Installation for School Factory Secure Smoke Sensor
Product Description The independent photoelectric smoke detector is a high-performance photoelectric sensor with special structure design, the use of well-known chip manufacturers proprietary chips and photoelectric sensing components, automatic SMT process production, with high sensitivity, good stability, low energy consumption, beautiful and durable, easy to install and so on. The product is suitable for fire detection and alarm in schools, factories, shopping malls, warehouses, homes and other places.,

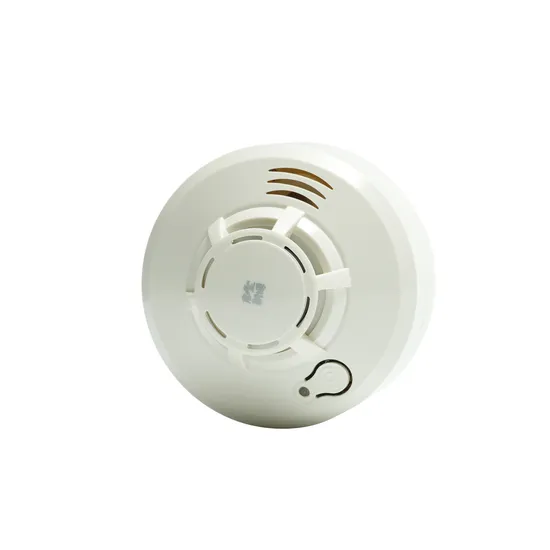

Detailed Photos
Product Parameters Basic Parameter:

Model number	JTY-GD-CB1310
Operating voltage	DC 3V (2 pcs 1.5V batteries )
Work current	≤10uA
Alarm currant	≤200mA
Battery	No. 5 Mercury-free batteries 1500mAh/1.5V
Work temperature	-10---+50
Work humidity	≤95%RH(40±2)
Smoke alarm	Audible and visual alarm
Alarm Sound Level	80 dB (3 meters distance)
Battery low voltage alarm	Audible and visual alarm
Detection area	≤80 square meter
Material	Fire-proof plastic
Installation	Ceiling mounted
Dimension	Φ105*61mm
Weight	162g (with battery)

Product Dimensions:
The protection area and radius of the detector required in the installation environment are shown in the table:

			Protection area A and protection radius R of a detector alarm
Types of fire detection alarms	Ground area S(square meter)	Room height H(m)	Roof slope α
			α≤15°		15°<α≤30°		α>30°
			A	R	A	R	A	R
			square meter	m	square meter	m	square meter	m
Smoke detection alarm	S≤80	H>12	80	6.7	80	7.2	80	8.0
	S>80	6<H≤12	80	6.7	100	8.0	120	9.9
		H≤6	60	5.8	80	7.2	100	9.0

Application Scenarios Matters Need Attention This product is not suitable for installation and use:
1. Places with smoke retention under normal circumstances.
2. large dust, water fog, steam, oil fog and other pollution places.
3. Places with relative humidity greater than 95%.
4. Places with ventilation speed greater than 5m/S.
This product is not suitable for installation and use:
1. Places with smoke retention under normal circumstances.
2. large dust, water fog, steam, oil fog and other pollution places.
3. Places with relative humidity greater than 95%.
4. Places with ventilation speed greater than 5m/S.
Maintenance:
The detection alarm shall be cleaned and maintained at least every 12 months after installation to keep the base and maze clean, and no dust and other debris can enter the maze to affect the normal work of the detection alarm.
Transportation and storage:
1. Transport and storage according to GB/T 15464-1995 "General Technical Conditions for Instrument Packaging".
2.during the transportation and storage process, the original packaging and seal of the manufacturer must be kept intact, and the product is not subject to severe impact.
3.Drastic changes in ambient temperature should be avoided.

Packing instructions:
1. Packing: 50 pieces
2, packaging box: 1 detector alarm, 2 expansion tubes, 2 self-tapping screws, 1 bag of desiccant, 1 manual, 1 certificate, 1 bag.
Installation Instructions 1. Base installation: Drill two mounting holes 58mm apart from the ceiling, drive into the expansion tube, and then fix the base A and B of the alarm with self-tapping screws (see Figure 3). The expansion tube and self-tapping screws come with the packaging.
2. Battery installation: Open the battery cover of the detection alarm, and install the battery according to the positive and negative poles marked in the battery box (see Figure 4). After the battery is installed, press and hold the self-test button of the detector and observe whether the alarm emits an audible and visual alarm. If the alarm is abnormal, check whether the battery is installed correctly.
3. Installation of detector and base: After the detector and base are aligned, turn the detector clockwise and observe the line alignment between the detector and base, that is, the installation is complete.
