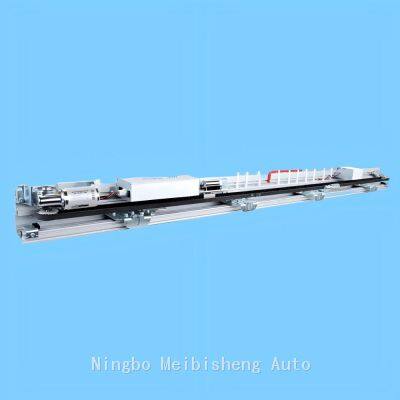

HB-100-200 mbsafe dunkermotoren automatic sliding glass door operator unit for shopping mall

Product Details

Product Description

Product Description
Product Description
Technical Parameters mbsafe dunkermotoren automatic sliding glass door operator unit for shopping mall

		HB-100	HB-200
Net opening width A	Folio	600-3000mm	700-4000mm
Net opening width A	Single open	700-1500mm	700-2000mm
Channel net height G	Maximum allowable height	3000mm	4000mm
The maximum weight of the door leaf	Folio	2*120KG	2*200KG
The maximum weight of the door leaf	Single open	1*150KG	1*300KG
Controller size (including box)	High	200mm	200mm
Controller size (including box)	Deep	225mm	225mm
Open speed	Folio	15-68cm/s(adjustable)	15-68cm/s(adjustable)
Open speed	Single open	15-68cm/s(adjustable)	15-68cm/s(adjustable)
Closing speed	Double-leaf sliding doors	10-65cm/s(adjustable)	10-65cm/s(adjustable)
Closing speed	Single-leaf sliding doors	10-65cm/s(adjustable)	10-65cm/s(adjustable)
Open the door to keep time		0.5-10s(adjustable)	0.5-8s(adjustable)
Electrical data	Mains	AC110V/220V,50/60Hz	AC110V/220V,50/60Hz
	Maximum current	5A	1A
	Maximum power	55W	100W
	Wait power	12W	14W
	Fuse	2.5A	Minimum 3.5A slow
Working environment temperature (Door weight to allow maximum load of 75%)		-30℃~+50℃	-30℃~+50℃

Flexible, simple, modular design
*Advanced Operating System: Programming using the latest technology, running flowing freely, soft opening and closing; special wheels and compact structure makes operating noise is extremely low.
*Unique manual operation: In the case of automatic doors do not install any sensors, dial can be achieved by way of hand door opened, closed and normally open function, cost savings, the installation more convenient, especially for indoor applications. This feature has applied for patents. (Remark:1.Flick open; 2.By pushing the normally open; 3.Normally open state, automatically shutdown after a light pull..)
*Convenient: Good modular design and compact design, beautiful appearance, installation is very simple. Simply follow the instructions of the various components in the power fixed beam, and then connect the power supply and other interfaces, power to run.
*Application: Standard configuration can be connected to a variety of additional accessories, suitable for all occasions , needs to the environment.
*Safe: Excellent performance pinch, just gently touched the door will automatically bounce obstacle, and quickly open the folder to avoid damage to human events and the unit occurs, run more safely.
*Conservation: Out of the flow of people can achieve moderate size door opening adjustment to improve indoor air section rate, saving energy.
*Alarm: Opportunity to force open the door in case of alarm, burglar play a good role.
Internation Exhibition Happy Ending ^ ^
Packaging & Shipping
1. Carton or Wood box package
2. We can offer the door to door service by air of by sea, just depend on your actual request. Such as DHL, UPS, TNT, Fedex...by air; and the sea transportations
Our Service
Service is at the heart of our operations. Our service encompasses a comprehensive suite of solutions tailored to meet the diverse needs of our esteemed clients.
Factory Warranty: Wholelife Free Service. Online Instruction.
Company Information
Ningbo Meibisheng Auto-gate CO.,LTD was founded in 1995. the headquarter is located in Ningbo, China.
Our group specialize in automatic door operataaors, hospital doors, steel door, medical protective equipment and access control systems.
We are a high-tech enterprise which integrates R&D, manufacturing, sales and after-sales service. Mbsafe Group enjoys rich technical resources, intelligent system, owns a number of independent core technologies and exchanged cooperation technology with Europe and America By communicating and learning with European countries, introducing advanced equipment, we produce our own typical automatic door operators, hospital doors and access control systems.
Our products share many features, such as high quality, low noise, stable performance, convenient installation and high safety.
After 25+ years of develop, Mbsafe Group owns six series of products.
We have been certified by ISO9001, ISO14001, TUV and CE. Our products are widely used in hotels, banks, airports, commercial buildings, hospitals and factories. Mbsafe brand products enjoy high reputation in domestic market, such as hospital engineering, cleaning and building fields.
Mbsafe products are widely exported to Europe, Middle east, Southeast asia and other countries. More and more customers accept our products, believe our products and fall in love with our products.
FAQ
Q1. Where is your company?
A1: Our company located in Ningbo city, close to Shanghai. 1.5h driving from PVG airport.
Q2. Are you a manufacturer or trading company? What can I buy from you?
A2: We are manufacturer. We specialize in automatic door operators, hospital doors, X-ray room doors, steel doors, garage door, platform safety shield door, lifting floor column, height adjustable desk, access control systems, hardware and so on many intelligent automation system products.
Q3: Are Mbsafe products easy to maintain?
A3: Yes, we come with professional maintenance manuals. Products are easy and convenient installation.
Q4. Do you provide OEM Service?
A4: Yes,we do. We are a professional manufacturer of automatic door with 25+ years of customization experience.
Q5. How long is your warranty? What kind of after-sale service can you provide?
A5: Our warranty is 2 years since the project done. During the warranty time, if anything has problems, we will replace it. If you can’t handle it, we will send engineer come to solve it without any charge.
Q6: How long is the delivery time?
A6: It ranges from 10-50 work days depending on different quantities and requirements.
Q7: How Is The MOQ?
A7: The MOQ Is 50 Sets.
Q8: How Can I Get The Samples?
A8: You Can Send Inquire To Us In Goldsupplier.
Q9: How about the payment terms?
A9: We accept payment terms as T/T; D/P; L/C, WU, Paypal.
